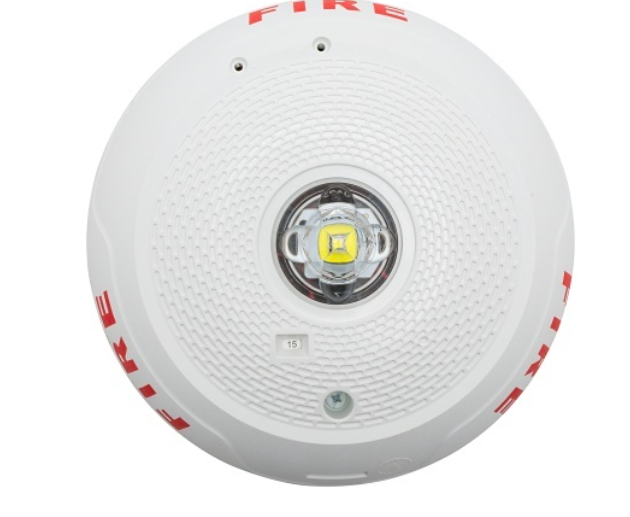

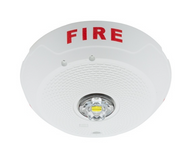

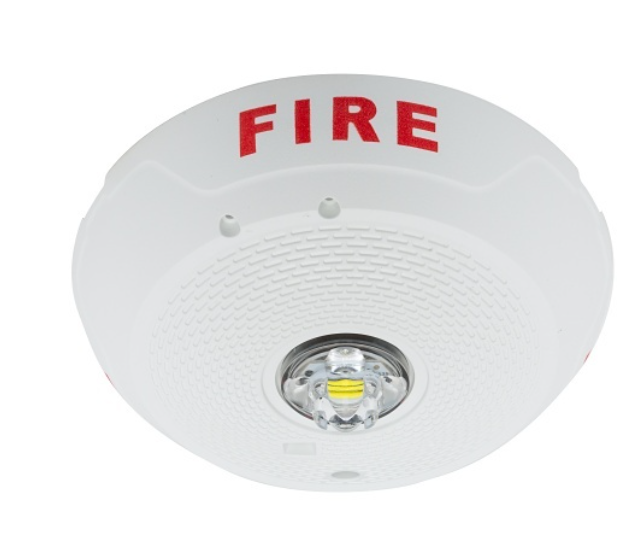

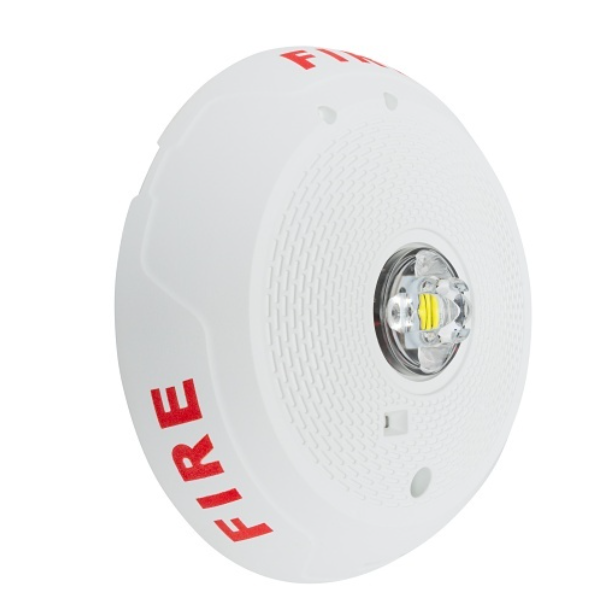

System Sensor SCWLED L-Series 24V LED Ceiling-Mount Fire Strobe, White
The System Sensor SCWLED L-Series LED Ceiling-Mount Fire Strobe is a white, 24V DC visual notification appliance designed for ceiling-mounted fire alarm applications. Its LED technology provides lower current draw than older xenon strobes, helping improve notification appliance circuit flexibility and reduce power-supply requirements.
Seven field-selectable candela settings allow the visual output to be configured for different installation requirements. Built-in digital voltage meter diagnostic test points let technicians measure device voltage without removing the strobe from the ceiling, supporting faster troubleshooting and end-of-line voltage checks.
The SCWLED features a plug-in design with minimal backbox intrusion. Its universal mounting plate incorporates an onboard shorting spring, allowing installers to check wiring continuity before attaching the notification appliance.
Main Features
- Energy-efficient LED technology provides lower current draw
- Operates on 24V DC
- Seven field-selectable ceiling candela settings: 15, 30, 75, 95, 115, 150 and 177 cd
- Rotary switch simplifies candela selection
- Digital voltage meter diagnostic test points support voltage testing without removing the appliance
- Ceiling-mount design with white housing, clear lens and FIRE marking
- Universal mounting plate with onboard shorting spring for wiring-continuity testing
- Plug-in design minimizes intrusion into the backbox
- Tamper-resistant construction
- Common aesthetics across the L-Series platform
- Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-Series devices
- Supports synchronization through compatible UL-approved power supplies using the System Sensor Sync protocol or an MDL3 Sync Module
- Listed for ceiling mounting
Product Specifications
| Specification | Details |
|---|---|
| Brand | System Sensor |
| Manufacturer Part Number | SCWLED |
| Product Series | L-Series LED |
| Product Type | LED fire alarm strobe |
| Mounting Type | Ceiling mount |
| Housing Color | White |
| Lens Color | Clear |
| Printed Marking | FIRE |
| Input Voltage | 24V DC only |
| Candela Settings | 15, 30, 75, 95, 115, 150 and 177 cd |
| UPC | 783863059155 |
