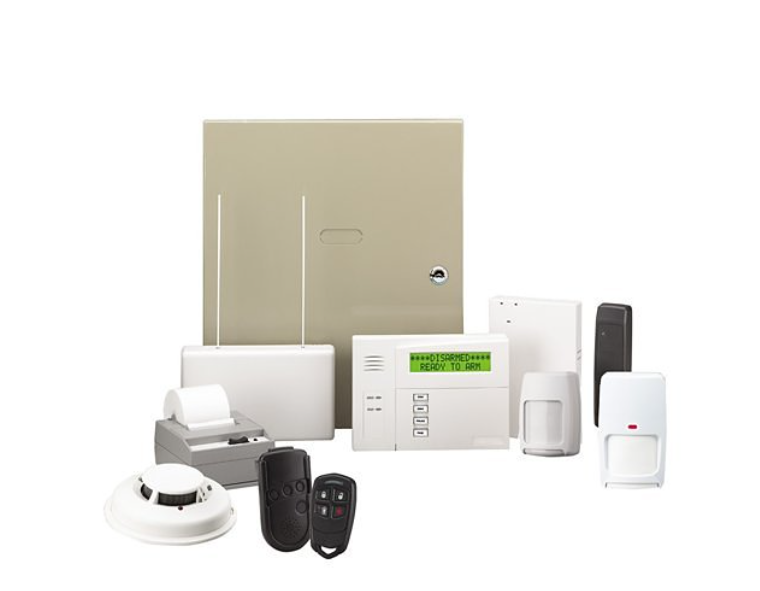

Honeywell Home VISTA-128BPT 128-Zone Commercial Burglary Control Panel
The Honeywell Home VISTA-128BPT is an expandable commercial burglary alarm control panel designed for light-commercial security installations. It combines hardwired, V-Plex polling-loop, and compatible 5800 Series wireless protection in a single platform with support for up to 128 total zones.
Eight independently controlled partitions allow one system to protect multiple departments, tenant areas, buildings, or sections of a property. The panel accommodates up to 150 user codes with seven authority levels and maintains a 512-event history for system management and troubleshooting.
The VISTA-128BPT can also integrate with compatible access control, CCTV, and AlarmNet communication products. Optional receivers, communicators, expansion devices, keypads, sensors, and accessories may be required and are sold separately.
Main Features
- Supports up to 128 total protection zones
- Provides nine onboard Style B hardwired zones
- Supports up to 119 additional V-Plex polling-loop zones
- Supports up to 127 wireless zones using compatible 5800 Series receivers
- Accommodates up to two compatible wireless receivers
- Provides eight independently controlled partitions
- Stores up to 150 user codes
- Offers seven programmable user-authority levels
- Supports up to 32 keypad macro commands
- Maintains a 512-event system log
- Power-limited bell circuit supplies up to 1.7A at 12VDC
- Supports up to 16 compatible two-wire smoke detectors on zone 1
- Zone 7 can be configured for keyswitch arming and disarming
- Compatible with select AlarmNet communication products
- Supports integration with compatible access-control and CCTV equipment
- Designed for residential and light-commercial security installations
Product Specifications
| Specification | Details |
|---|---|
| Brand | Honeywell Home |
| Manufacturer | Resideo |
| Manufacturer Part Number | VISTA-128BPT |
| Product Line | VISTA |
| Product Series | VISTA Turbo |
| Product Type | Commercial burglary alarm control panel |
| Maximum Total Zones | 128 |
| Onboard Hardwired Zones | 9 Style B zones |
| V-Plex Expansion | Up to 119 additional zones |
| Wireless Expansion | Up to 127 zones with compatible receivers |
| Compatible Wireless Family | Honeywell Home 5800 Series |
| Maximum Wireless Receivers | 2 compatible receivers |
| Partitions | 8 |
| User Codes | 150 |
| User-Authority Levels | 7 |
| Keypad Macros | Up to 32 |
| Event Log | 512 events |
| Bell Output | 12VDC, 1.7A maximum |
| Two-Wire Smoke Detector Support | Up to 16 compatible detectors on zone 1 |
| Keyswitch Support | Zone 7 |
| Connectivity | Wired with optional wireless expansion |
| Enclosure Dimensions | 14.5"H × 12.5"W × 3"D |
| Installation Type | Professional installation |
| UPC | 619172081474 |
