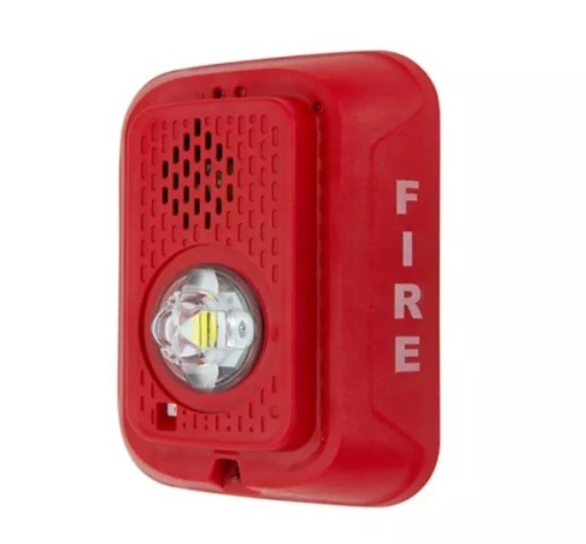

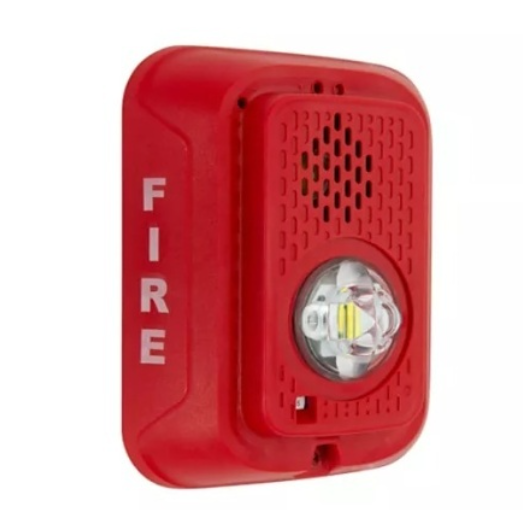

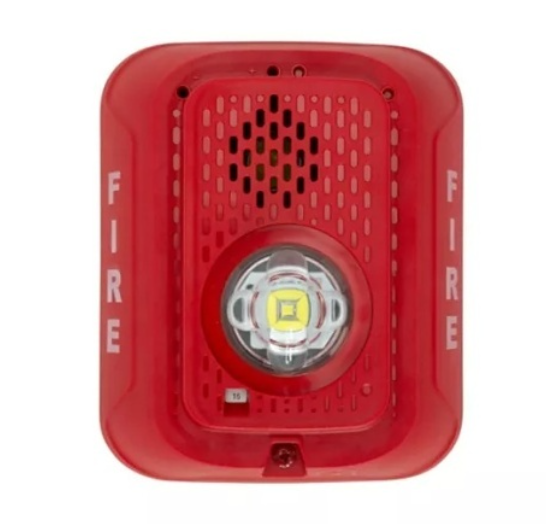

System Sensor P2RLED L-Series 24V 2-Wire LED Horn Strobe, Wall-Mount, FIRE, Red
The System Sensor P2RLED is a standard-size, wall-mounted audible and visible fire-alarm notification appliance from the L-Series LED platform. It combines a selectable-output horn and clear-lens LED strobe in a red, tamper-resistant housing marked “FIRE.”
Designed for 24V notification appliance circuits, the P2RLED uses LED strobe technology to reduce current draw compared with legacy xenon appliances. Lower power requirements can provide greater flexibility when calculating NAC capacity, voltage drop and power-supply requirements.
Seven field-selectable wall-strobe settings—15, 30, 75, 95, 110, 135 and 185 candela—allow installers to configure the visual output for the intended room and code requirements. Eight horn configurations provide Temporal 3 or continuous operation, standard or 3.1 kHz tones, and high or low volume.
The supplied universal mounting plate supports a plug-in installation with minimal device intrusion into the electrical box. An onboard shorting spring allows installers to test wiring continuity before attaching the horn strobe, helping protect the device from construction damage and reduce installation-related ground faults.
Front-accessible digital voltage meter test points let technicians check device and end-of-line voltage without removing the appliance from the wall. The P2RLED also supports System Sensor synchronization when connected to a compatible power supply, properly configured fire-alarm control panel or MDL3 synchronization module.
Main Features
- Combined audible horn and visible LED strobe
- Two-wire notification appliance design
- 24V DC operation
- Red housing with clear lens
- Wall-mount configuration
- Standard English “FIRE” marking
- Lower-current LED strobe technology
- Seven field-selectable candela settings
- 15, 30, 75, 95, 110, 135 and 185 cd options
- Eight selectable horn configurations
- Temporal 3 and non-temporal horn patterns
- Standard and 3.1 kHz horn tones
- High and low volume selections
- Horn rated at 88+ dBA at 16V
- Rotary switches simplify output selection
- Front-accessible DVM diagnostic test points
- Plug-in appliance and universal mounting plate
- Onboard shorting spring supports wiring-continuity testing
- Tamper-resistant construction
- System Sensor synchronization support
- Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-Series devices
- Intended for indoor fire-alarm notification applications
Compatibility and Installation Notice
The P2RLED is a 24V fire-alarm notification appliance and is not a standalone horn or smoke detector. It requires connection to a compatible fire-alarm control panel or listed notification power supply.
Electrical compatibility with earlier System Sensor devices does not automatically confirm that every appliance can be combined on the same NAC. Before installation, verify:
- Available NAC voltage and current
- Required synchronization protocol
- Circuit polarity and wiring class
- Voltage drop at the final appliance
- Selected horn and candela settings
- Fire-alarm panel and power-supply compatibility
- Applicable NFPA 72 and local code requirements
- Approval by the authority having jurisdiction
Professional fire-alarm system design and installation are recommended.
What’s Included
- System Sensor P2RLED horn-strobe appliance
- Universal wall-mounting plate
Surface-mount back boxes, trim rings, synchronization modules, wiring and other accessories are sold separately unless explicitly stated otherwise.
Recommended Applications
- Commercial fire-alarm systems
- Corporate and professional buildings
- Schools and educational facilities
- Healthcare properties
- Hotels and hospitality facilities
- Retail stores
- Multifamily buildings
- Warehouses and industrial properties
- Government facilities
- New installations and compatible L-Series upgrades
Technical Specifications
| Specification | Details |
|---|---|
| Brand | System Sensor |
| Manufacturer | Honeywell International |
| Model | P2RLED |
| Product series | L-Series LED |
| Product type | LED horn strobe |
| Notification type | Audible and visible |
| Wiring | Two-wire |
| Mounting orientation | Wall |
| Product size | Standard |
| Housing color | Red |
| Lens color | Clear |
| Housing marking | FIRE |
| Nominal voltage | Regulated 24V DC |
| Operating-voltage range | 16–33V DC |
| Candela settings | 15, 30, 75, 95, 110, 135 and 185 cd |
| Strobe flash rate | 1 flash per second |
| Horn configurations | 8 selectable tone/volume combinations |
| Horn patterns | Temporal 3 and non-temporal |
| Horn frequencies | Standard and 3.1 kHz |
| Volume settings | High and low |
| Horn rating | 88+ dBA at 16V; output varies by setting |
| Maximum current range | 35–190 mA RMS depending on horn and candela settings |
| Synchronization | System Sensor Sync protocol |
| Diagnostic feature | Front-accessible DVM voltage test points |
| Compatible wire size | 12–18 AWG |
| Mounting boxes | 4" × 4" × 1½", single-gang, double-gang, 4" octagonal or compatible SBBRL surface box |
| Dimensions | 5.67"H × 4.70"W × 2.07"D |
| Operating temperature | 32°F–120°F (0°C–49°C) |
| Operating humidity | 10–93%, non-condensing |
| Environment | Indoor |
| Certifications | UL/ULC Listed, FM Approved and CSFM Listed |
| UPC | 783863058851 |
