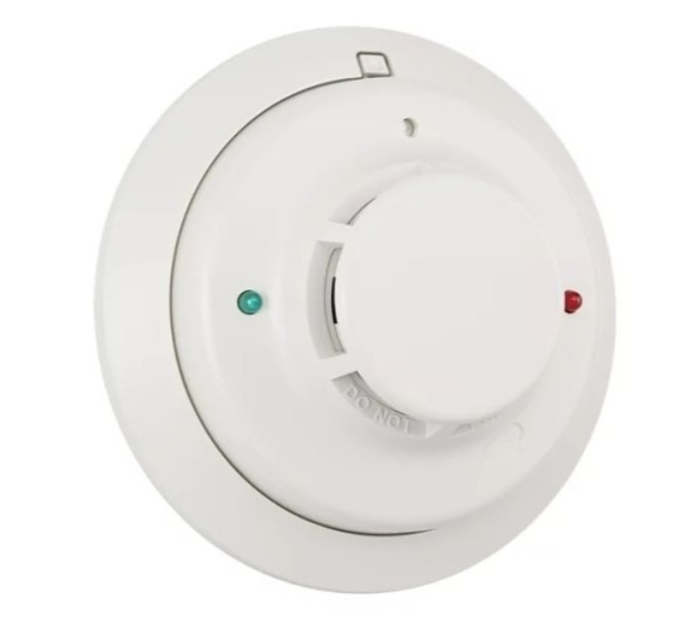

System Sensor 2W-B i3 2-Wire Photoelectric Smoke Detector with Mounting Base, White

The System Sensor 2W-B is a conventional two-wire photoelectric smoke detector from the i3 Series. Designed for connection to a compatible fire alarm or security control panel, it combines reliable smoke detection with a plug-in design that simplifies installation, inspection and maintenance.

The included mounting base can be prewired before the detector head is installed. A large wire-entry port and in-line terminals with SEMS screws provide ample room for routing 14–22 AWG wiring. Once the base is secured, the detector attaches using System Sensor’s Stop-Drop ’N Lock mechanism.

Drift compensation automatically adjusts for gradual changes caused by dust and other contaminants in the sensing chamber. Smoothing algorithms help reduce nuisance alarms caused by brief electrical or environmental interference.

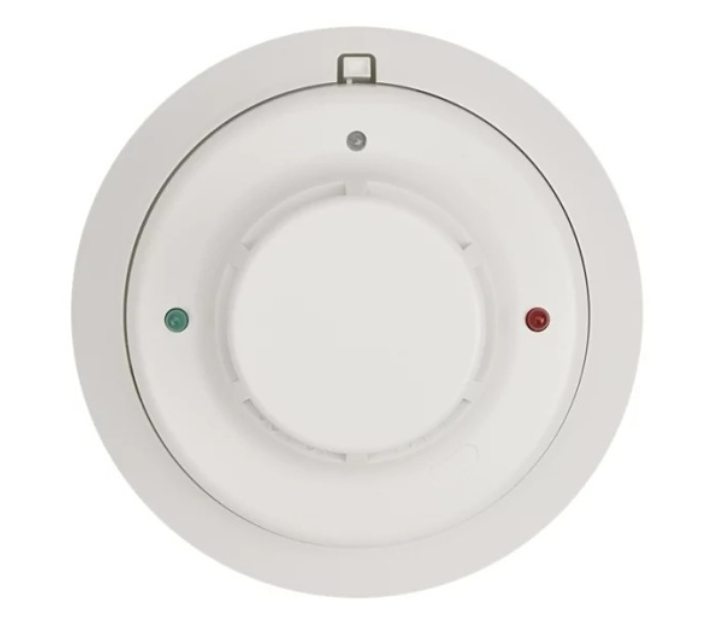

Wide-angle green and red LEDs provide immediate visual status information. The green LED indicates normal standby operation, while the red LED identifies alarm or out-of-sensitivity conditions. A built-in test switch supports routine system testing.

When used with a compatible i3-equipped control panel or optional 2W-MOD2 maintenance module, the detector can provide remote maintenance signaling and EZ Walk loop testing. These features help technicians identify detectors requiring service and verify initiating-device circuit wiring.

Main Features

• Conventional two-wire photoelectric smoke detector
• Designed for compatible fire and security control panels
• Mounting base included
• Plug-in detector head simplifies installation and replacement
• Stop-Drop ’N Lock attachment mechanism
• Large wire-entry opening
• In-line terminals with SEMS screws
• Accepts 14–22 AWG wiring
• Drift compensation helps maintain calibrated sensitivity
• Smoothing algorithms help reduce nuisance alarms
• Nominal sensitivity of 2.5% per foot
• Wide-angle red and green status LEDs
• Built-in detector test switch
• Removable detector cover and sensing chamber
• Remote maintenance signaling with compatible equipment
• EZ Walk loop testing with compatible i3 equipment
• Nominal 12V or 24V non-polarized operation
• UL 268 listed
• Suitable for ceiling or compatible back-box mounting

Compatibility and Installation Notice

The 2W-B is a system-connected smoke detector, not a standalone household smoke alarm. It does not contain an internal sounder or backup battery. Alarm notification must be provided by the connected fire or security system and its notification appliances.

Two-wire smoke-detector compatibility depends on the control panel, initiating-device circuit, end-of-line components and permitted number of detectors. Confirm that the 2W-B is specifically listed as compatible with the intended control panel before ordering or installation.

Installation, detector placement, wiring, testing and maintenance should be completed by a qualified fire-alarm professional in accordance with the control-panel documentation, applicable codes, NFPA 72 and the authority having jurisdiction.

What’s Included

• System Sensor 2W-B photoelectric smoke-detector head
• System Sensor plug-in mounting base

The fire-alarm control panel, wiring, end-of-line resistor, maintenance module, remote indicator and notification appliances are sold separately unless explicitly stated otherwise.

This Model Does Not Include

• Built-in audible sounder
• Fixed-temperature heat detector
• Carbon monoxide detection
• Form C alarm relay
• Internal battery or battery backup

Recommended Applications

• Conventional fire-alarm systems
• Compatible residential security systems
• Commercial building fire detection
• Offices and professional buildings
• Multifamily properties
• Retail and hospitality facilities
• Service and replacement applications for existing i3 systems

• Technical Specifications

  Specification	Details
  Brand	System Sensor
  Manufacturer	Honeywell International
  Product series	i3
  Model	2W-B
  Manufacturer part number	2WB/2W-B
  Product type	Conventional smoke detector
  Detection technology	Photoelectric
  Wiring configuration	Two-wire
  Thermal sensor	No
  Built-in sounder	No
  Carbon monoxide detection	No
  Form C relay	No
  Mounting base	Included
  Nominal operating voltage	12/24V DC, non-polarized
  Operating-voltage range	8.5–35V DC
  Average standby current	50 µA maximum
  Peak standby current	100 µA
  Maximum alarm current	130 mA, limited by control panel
  Nominal sensitivity	2.5% per foot
  Status indicators	Wide-angle red and green LEDs
  Test control	Built-in test switch
  Compatible wire size	14–22 AWG
  Operating temperature	32°F–120°F (0°C–49°C)
  Operating humidity	0–95% RH, non-condensing
  Diameter with base	Approximately 5.3 inches
  Height with base	Approximately 2 inches
  Weight	Approximately 6.3 oz
  Mounting	3½-inch or 4-inch octagonal box, single-gang box, 4-inch square box with plaster ring, or direct ceiling mounting
  Color	White
  Certification	UL 268
  UPC	783863017599
