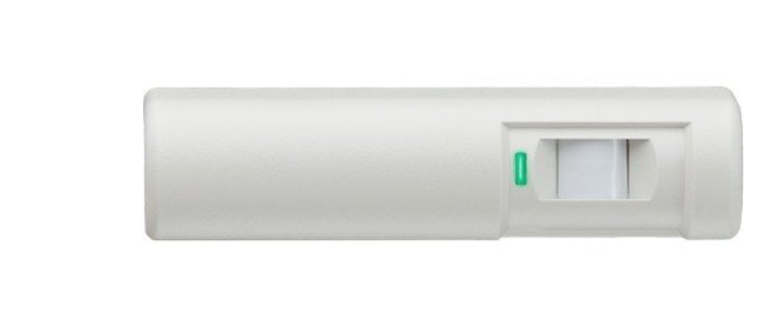

Radionix DS160 High-Performance Request-to-Exit PIR Motion Sensor with Sounder, Light Gray

The Radionix DS160, manufactured by Bosch, is a high-performance passive infrared (PIR) motion sensor designed for touchless request-to-exit (REX) applications. When installed above or beside an access-controlled door, the DS160 detects movement within the selected coverage area and activates its relay output according to the configured access-control settings.

Designed for residential and commercial access-control systems, the DS160 combines adjustable timers, door monitoring, an integrated sounder, and precise coverage control. Its wrap-around detection pattern can be aimed vertically and masked to focus coverage on the intended exit area.

The exclusive Sequential Logic Input (SLI) allows a second detection device to be connected and requires events to occur in the correct sequence. This helps prevent an object passed through or underneath a door from unintentionally activating the request-to-exit sensor.

When connected to a compatible door contact, the DS160 can monitor the door and activate its adjustable sounder if the door remains open longer than permitted. The relay latch time can be adjusted from approximately 0.5 to 64 seconds, with selectable resettable or non-resettable operation.

The DS160 features a light-gray ABS housing for wall- or ceiling-mounted installations. The comparable DS161 model provides the same core functionality in a black housing.

Main Features

• High-performance PIR request-to-exit motion sensor
• Touchless activation for access-controlled doors
• Built-in door monitor with audible sounder alert
• Exclusive Sequential Logic Input for added activation security
• Adjustable wrap-around detection pattern
• Internal vertical aiming for precise coverage placement
• Coverage area up to approximately 8 × 10 feet
• Adjustable relay latch time from approximately 0.5 to 64 seconds
• Selectable resettable and non-resettable timer operation
• Selectable relay-trigger mode
• Selectable fail-safe or fail-secure operation
• Adjustable sounder volume
• Activation LED
• Two Form C relay contacts
• Suitable for wall or ceiling surface mounting
• Light-gray housing for discreet indoor installation




  Product Specifications

  • Brand: Radionix
  • Manufacturer: Bosch
  • Manufacturer Part Number: DS160
  • Product Type: Request-to-exit PIR motion detector with sounder
  • Application: Residential and commercial access control
  • Detection Technology: Passive infrared
  • Coverage: Approximately 8 ft. × 10 ft. (2.4 m × 3 m)
  • Latch Time: Adjustable from approximately 0.5 to 64 seconds
  • Relay Output: Two Form C contacts
  • Relay Rating: 1A at 30 VAC or VDC for resistive loads
  • Input Power: 12–30 VAC or 12–30 VDC
  • Mounting: Wall or ceiling surface mount
  • Color: Light gray
  • Material: High-impact ABS plastic
  • Dimensions: 1.80 in. H × 6.75 in. W × 1.75 in. D

• Compatibility and Installation

  The Radionix DS160 is intended for compatible access-control systems and locking hardware that support request-to-exit relay devices. Available functions depend on the connected controller, door contact, locking hardware, wiring, and device programming.

  Important: This sensor is not intended to serve as the primary means of emergency egress. Required panic hardware and other life-safety equipment must be installed according to applicable building, fire, and access-control codes.

  Professional installation and testing are recommended. Verify the power, relay, controller, door hardware, mounting location, and required operating mode before ordering. Contact our Sales Tech if you have questions about this product.
