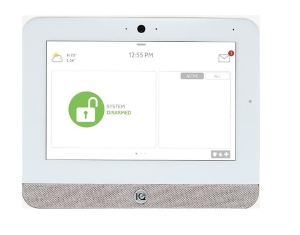

IQP5017 IQ Panel 5 PowerG+ 7-Inch Touchscreen Security & Home Automation Panel, Verizon LTE

The IQP5017 IQ Panel 5 is an all-in-one touchscreen security and home automation control panel with built-in PowerG+ 915 MHz wireless technology and Verizon LTE cellular connectivity. Designed for residential and commercial security applications in the United States, this model combines intrusion detection, life-safety device support, smart home control, cellular communication, and an intuitive user interface in one streamlined panel.

Powered by a Qualcomm Dragonwing quad-core processor, Android 14 operating system, and 32GB of internal storage, the IQ Panel 5 delivers responsive performance and a platform designed to support future feature and device integrations. Its 7-inch capacitive glass touchscreen provides a clear 1280 × 800 interface for managing security, automation devices, system status, user access, and connected services.

Built-in PowerG+ supports long-range, encrypted, two-way wireless communication with compatible PowerG and PowerG+ security devices. The panel can support up to 128 PowerG+ security devices, making it suitable for systems ranging from residential installations to larger commercial applications.

The modular SRF architecture allows installers to add a compatible 319.5 MHz, 345 MHz, 433 MHz, or Ethernet daughter card based on the requirements of the project. These optional cards simplify compatible system takeovers while allowing installers to purchase only the radio or network capability needed for each installation.

A built-in Verizon LTE Cat 4 cellular communicator, dual-band Wi-Fi, Bluetooth Low Energy 5.0, and an 800-Series Z-Wave Long Range module provide extensive communication and smart-device integration options. The panel also features a 13MP PortraitView camera, dual microphones, front-facing speakers, and an integrated 85 dB piezo siren.

Main Features

• All-in-one security and home automation control panel
• United States model with built-in Verizon LTE Cat 4 communicator
• Built-in PowerG+ 915 MHz long-range wireless technology
• Secure, encrypted two-way communication with compatible PowerG devices
• Supports up to 128 PowerG+ security devices
• Modular SRF architecture for flexible system configuration
• Supports an optional 319.5 MHz, 345 MHz, 433 MHz, or Ethernet daughter card
• 7-inch capacitive glass multi-touch display
• 1280 × 800 touchscreen resolution
• Qualcomm Dragonwing quad-core processor
• Android 14 operating system
• 32GB of internal NAND flash storage
• Dual-band 2.4 GHz and 5 GHz Wi-Fi
• Bluetooth Low Energy 5.0
• 800-Series Z-Wave Long Range module
• Supports up to 167 compatible Z-Wave devices
• 13MP PortraitView camera with a 120-degree wide-angle field of view
• Two front-facing 4-watt speakers
• Integrated 85 dB piezo siren
• Supports up to four security partitions
• Supports up to 242 user codes
• Multi-color system-status LED
• Dual panel and wall tamper protection
• SmartMount wall-mounting system for faster installation
• Rechargeable 3,000mAh lithium-ion backup battery

Product Specifications

• Product Line: IQ Panel 5
• Manufacturer Part Number: IQP5017
• Product Type: Security and home automation control panel
• Cellular Carrier: Verizon
• Cellular Technology: LTE Cat 4
• PowerG Frequency: 915 MHz
• Touchscreen Size: 7 inches
• Display Resolution: 1280 × 800
• Processor: Qualcomm Dragonwing quad-core system-on-module
• Operating System: Android 14
• Internal Storage: 32GB NAND flash
• Wi-Fi: 802.11 a/b/g/n/ac, dual-band 2.4 GHz and 5 GHz
• Bluetooth: Bluetooth Low Energy 5.0
• Z-Wave: 800-Series Z-Wave Long Range
• Camera: 13MP fixed-focus PortraitView camera
• Camera Field of View: 120 degrees
• User Capacity: Up to 242 users
• Partition Capacity: Up to four partitions
• Power Supply Output: 12V DC, 1,000mA
• Backup Battery: Rechargeable 3,000mAh lithium-ion
• Dimensions: 6.1 in. H × 7.5 in. W × 1.0 in. D
• Operating Environment: Indoor, dry locations
• Certifications and Standards: FCC, UL 985, UL 1023, UL 2610, ULC-S304 and ULC-S545

Compatibility and Service Requirements

The IQP5017 includes built-in PowerG+ 915 MHz wireless technology. Compatibility with legacy 319.5 MHz, 345 MHz, or 433 MHz wireless sensors requires the appropriate optional SRF daughter card, sold separately. An optional Ethernet daughter card is also available for compatible applications.

This IQP5017 version is configured for Verizon cellular service in the United States. Cellular monitoring, remote access, mobile-app features, and other interactive services require activation through a compatible alarm service provider and an applicable service plan.

Compatibility notice: Verify the required cellular carrier, wireless sensor frequencies, optional daughter card, connected devices, monitoring provider, and service plan before ordering. Professional installation and programming are recommended. Contact our Tech Support if you have questions about this product.
