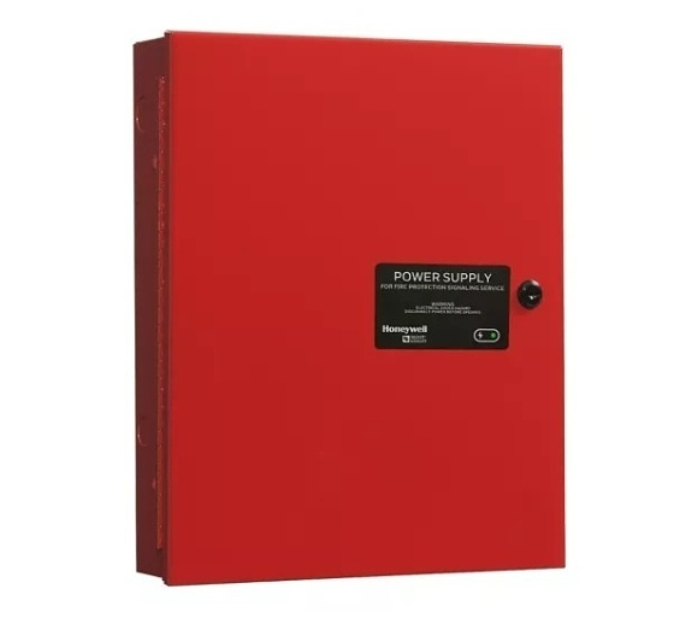

Honeywell Power HPF-PS6 PS Series 6A Remote NAC Power Supply/Charger, Red
The Honeywell Power HPF-PS6 PS Series is a 6A remote fire alarm power supply and battery charger with five independently configurable, power-limited output circuits. It connects to compatible 12V or 24V fire alarm control panels or can operate as a standalone 24VDC power supply.
Each output can be configured for Class B notification appliance circuits, resettable or non-resettable auxiliary power, or door-holder power. Adding the optional ZNAC-PS converter card enables Class A wiring without reducing the number of available output circuits.
The HPF-PS6 supports synchronized notification appliances using System Sensor, Wheelock, Gentex and AMSECO protocols. Individual output power and trouble LEDs, system-status indicators and trouble-history mode help installers identify open circuits, short circuits and other system conditions.
An integral charger supports lead-acid standby batteries from 7Ah to 33Ah. The lockable red metal cabinet accommodates two 7Ah or two 18Ah batteries; batteries up to 33Ah require a separate battery cabinet.
Main Features
- 6A maximum total continuous output
- Five independently configurable, power-limited output circuits
- Provides filtered 24VDC output power
- Connects to compatible 12V or 24V fire alarm control panels
- Can operate as a standalone power supply
- Class B notification appliance circuits in the standard configuration
- Supports Class A circuits with the optional ZNAC-PS converter card
- Converts from Class B to Class A without reducing the number of outputs
- Configurable resettable or non-resettable auxiliary power
- Configurable door-holder power
- ANSI Temporal 3 and Temporal 4 coded-output options
- System Sensor, Wheelock, Gentex and AMSECO synchronization protocols
- Supports cascading of up to four compatible power supplies
- Two isolated input/control circuits programmable to any output
- Individual power and trouble LEDs for each output circuit
- System indicators for power, battery/charger fault and ground fault
- Trouble-history mode supports system diagnostics
- Selectable end-of-line supervision from 2k to 27k ohms
- Completely configurable using onboard DIP switches
- Integral lead-acid battery charger
- Lockable red metal enclosure
- Optional ZNAC-PS card and standby batteries sold separately
Product Specifications
| Specification | Details |
|---|---|
| Brand | Honeywell Power |
| Manufacturer | Honeywell |
| Manufacturer Part Number | HPF-PS6 |
| Product Series | PS Series |
| Product Type | Remote fire alarm power supply and battery charger |
| Maximum Total Output | 6A continuous |
| Output Voltage | 24VDC filtered |
| Number of Outputs | Five independently configurable circuits |
| Standard NAC Wiring | Class B |
| Optional NAC Wiring | Class A with ZNAC-PS converter card |
| Maximum Special-Application Current | 3A per circuit |
| Control Inputs | Two isolated programmable input/control circuits |
| Compatible FACP Input | 12VDC or 24VDC |
| Trigger Input Voltage | 9–32VDC |
| Primary Input Power | 120VAC, 50/60Hz, 5A maximum |
| Battery Type | Lead-acid |
| Battery Float-Charge Voltage | 27.6VDC |
| Maximum Nominal Charging Current | 1.5A |
| Supported Battery Capacity | 7–33Ah |
| Internal Battery Capacity | Two 7Ah or two 18Ah batteries |
| External Battery Capacity | Up to 33Ah using a separate cabinet |
| Enclosure | Lockable metal cabinet |
| Enclosure Color | Red |
| Dimensions | 20"H × 14.5"W × 3.5"D |
| Weight with Two 7Ah Batteries | Approximately 24 lb |
| UPC | 783008113278 |
| Country of Origin | United States; country of origin is subject to change |
| Batteries | Sold separately |
| ZNAC-PS Class A Card | Sold separately |
Listings and Compliance
- UL 864 compliant for NAC expander operation
- UL 1481 compliant for fire alarm system power supplies
- UL Listed: S24562
- California State Fire Marshal approved: 7315-1637:0505
- FDNY approved
- FM approved
- NFPA 72 compliant
