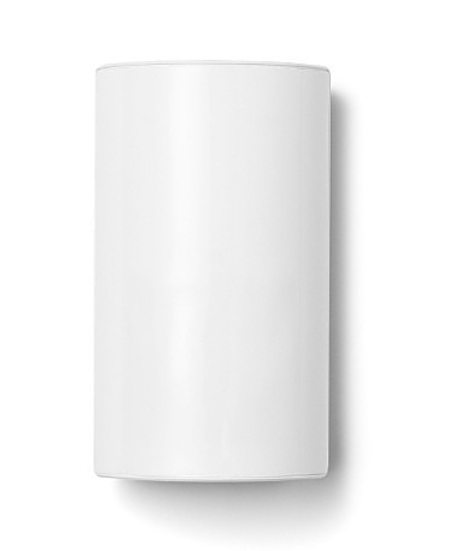

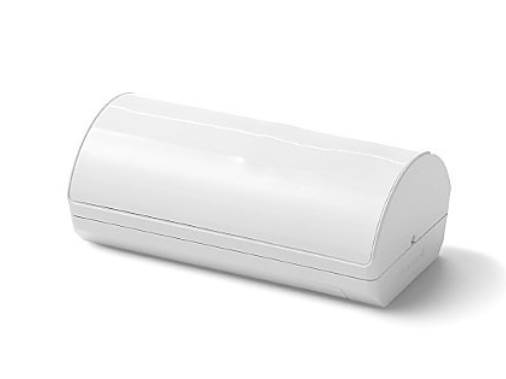

Honeywell Home PROSIXPIRV ProSeries SiX Wireless PIR Motion Detector, 40' x 56', White
The Honeywell Home PROSIXPIRV is an indoor wireless passive infrared motion detector designed for compatible ProSeries and VISTA H security systems that support encrypted PROSiX two-way wireless technology. Its expansive 40 × 56 ft detection pattern makes it well suited for monitoring living rooms, offices, hallways, entry areas and other large indoor spaces.
The detector uses 128-bit AES encryption to provide secure two-way communication with the alarm control panel. Auto-enrollment, an activated battery pull tab and no-touch adjustment simplify professional installation while helping reduce programming errors.
Through AlarmNet 360, authorized security professionals can remotely review signal strength, battery condition and sensor settings. Supported parameters can also be adjusted remotely, helping technicians troubleshoot system issues without immediately scheduling an onsite service visit.
Selectable pet immunity helps reduce false alarms caused by pets weighing up to 80 lb when the detector is mounted and configured according to the installation instructions. Advanced temperature compensation helps maintain consistent detection performance across changing indoor temperatures.
The PROSIXPIRV is powered by one user-replaceable CR123A lithium battery and includes LED status indication and cover-tamper protection. It can be installed on a wall, in a corner or on another suitable indoor surface.
Main Features
- Encrypted PROSiX two-way wireless PIR motion detector
- Large 40 × 56 ft motion-detection pattern
- Approximately 90° detection angle
- Selectable pet immunity up to 80 lb when properly installed
- Typical wireless communication range up to 375 ft under suitable conditions
- Secure 2.4 GHz wireless communication
- True 128-bit AES encryption
- Automatic sensor enrollment
- Battery pull tab for faster activation
- No-touch adjustment helps simplify installation
- Remote configuration through compatible professional services
- AlarmNet 360 System Health Check support
- Remote signal-strength, sensor-setting and battery monitoring
- Advanced temperature compensation
- LED status and walk-test indication
- Cover-tamper protection
- User-replaceable CR123A lithium battery
- Wall, corner or surface mounting
- Designed for indoor residential and light-commercial applications
- Replaces the earlier Honeywell Home PROSIXPIR model
Compatibility Notice
The PROSIXPIRV is not a universal wireless motion detector and does not operate as a standalone device. It requires a compatible Honeywell Home or Resideo ProSeries or VISTA H control panel that supports PROSiX/SiX encrypted wireless devices.
It should not be assumed compatible with a legacy Honeywell 5800-Series receiver solely because it is a Honeywell Home product. Confirm the control panel and wireless receiver compatibility before ordering.
AlarmNet 360 remote diagnostics and configuration features generally require access through an authorized alarm dealer or professional service provider.
What’s Included
- Honeywell Home PROSIXPIRV wireless PIR motion detector
- One CR123A lithium battery
- Mounting hardware
Recommended Applications
- Residential security systems
- Apartments and condominiums
- Offices and professional buildings
- Retail stores
- Reception and waiting areas
- Interior hallways
- Living rooms and common areas
- Light-commercial properties
- ProSeries and VISTA H system expansions
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Resideo Technologies |
| Brand | Honeywell Home |
| Model/SKU | PROSIXPIRV |
| Product series | PROSiX, ProSeries and VISTA H |
| Product type | Wireless PIR motion detector |
| Sensor technology | Passive infrared |
| Application | Indoor motion detection |
| Detection pattern | 40 × 56 ft (12 × 17 m) |
| Detection angle | Approximately 90° |
| Pet immunity | Selectable; up to 80 lb when properly installed |
| Typical RF range | Up to 375 ft; installation conditions affect range |
| RF frequency | 2.4 GHz |
| Communication | PROSiX two-way wireless |
| Encryption | 128-bit AES |
| Battery | One 3V CR123A lithium battery |
| Battery included | Yes |
| LED indicator | Yes |
| Temperature compensation | Yes |
| Tamper protection | Cover tamper |
| Mounting | Wall, corner or surface |
| Operating temperature | 32°F to 122°F (0°C to 50°C) |
| Relative humidity | Up to 95%, non-condensing |
| Dimensions | Approximately 4.1"H × 2.4"W × 1.6"D |
| Weight | Approximately 0.25 lb |
| Color | White |
| Installation environment | Indoor |
| Certifications | cETLus, FCC, IC, RoHS, SIA-PIR-01, UL 639 and ULC-S306-03 |
| Limited warranty | 2 years |
| Replaces | PROSIXPIR |
