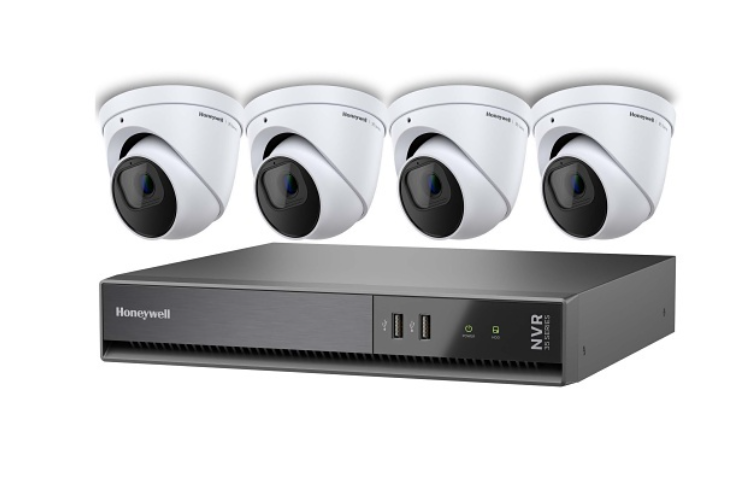

The Honeywell HN35040101E45PK 35 Series Video Surveillance Kit combines four 5MP day/night ball cameras with a four-channel PoE network video recorder and 1TB of installed storage. This matched camera-and-recorder package provides a practical surveillance solution for small and medium-sized businesses, retail stores, offices, restaurants, warehouses and other commercial properties.
The kit includes four Honeywell HC35WE5R3 ball cameras, each producing video at up to 2592 × 1944 resolution and 30 fps. A wide-angle 2.8mm fixed lens provides an 88° horizontal and 65° vertical field of view for monitoring entrances, sales floors, offices, hallways and outdoor areas.
True day/night operation produces color video during the day and clear black-and-white infrared footage at night. Smart IR illumination provides visibility up to 40 m (131 ft), while 120 dB True WDR helps preserve detail in scenes containing bright entrances, windows, shadows and backlighting.
Built-in video analytics include human and vehicle smart motion detection, intrusion detection, loitering detection, people counting and camera-tampering detection. These tools help improve situational awareness while reducing alarms caused by irrelevant movement.
The included Honeywell HN35040101 NVR provides four integrated PoE camera ports and 1TB of recording storage. PoE allows each camera to receive power and transmit video through a single Ethernet cable. The recorder supports H.265, H.264 and Smart Codec compression, recording resolutions up to 8MP/4K, HDMI and VGA display outputs, event-based recording and remote access through Honeywell Smart Viewer and the HSV Mobile App.
Main Features
- Complete four-camera IP video surveillance system
- Four HC35WE5R3 5MP day/night ball cameras
- HN35040101 four-channel PoE NVR with 1TB storage
- Up to 2592 × 1944 camera resolution at 30 fps
- Wide-angle 2.8mm fixed lenses
- 88° horizontal and 65° vertical field of view
- Smart IR night vision up to 40 m (131 ft)
- True day/night operation with removable IR-cut filter
- 120 dB True WDR for high-contrast scenes
- Human and vehicle smart motion detection
- Intrusion, loitering, people-counting and tampering analytics
- H.265, H.264 and MJPEG camera compression
- Smart Codec for more efficient bandwidth and storage usage
- Plug-and-play PoE camera connections
- Remote viewing through Honeywell Smart Viewer and HSV Mobile App
- IP66/IP67-rated cameras for indoor or outdoor installation
- NDAA Section 889-compliant cameras and recorder
- Secure video transmission with encrypted connectivity
What’s Included
- 1 × Honeywell HN35040101 four-channel PoE NVR
- 1 × Preinstalled 1TB recording drive
- 4 × Honeywell HC35WE5R3 5MP IR fixed ball cameras
Ethernet cabling, display equipment, optional mounting accessories and external audio or alarm devices should be confirmed separately before installation.
Recommended Applications
- Retail stores and shopping areas
- Small and medium-sized businesses
- Offices and commercial buildings
- Restaurants and hospitality properties
- Warehouses and stockrooms
- Building entrances and exits
- Parking and exterior areas
- Schools and administrative facilities
Technical Specifications
| Specification |
Details |
| Kit model |
HN35040101E45PK |
| Product series |
Honeywell 35 Series |
| System type |
IP camera and NVR surveillance kit |
| Cameras included |
4 × HC35WE5R3 |
| Recorder included |
HN35040101 embedded NVR |
| NVR channels |
4 |
| Integrated PoE ports |
4 |
| Installed NVR storage |
1TB |
| NVR drive bays |
1 SATA |
| Maximum NVR recording resolution |
Up to 8MP/4K |
| Camera resolution |
5MP, 2592 × 1944 |
| Maximum camera frame rate |
30 fps |
| Camera sensor |
1/2.8-inch progressive-scan CMOS |
| Lens |
2.8mm fixed |
| Maximum aperture |
f/2.0 |
| Horizontal field of view |
88° |
| Vertical field of view |
65° |
| Wide Dynamic Range |
120 dB True WDR |
| Day/night operation |
Automatic ICR; color by day and B&W at night |
| IR night-vision range |
Up to 40 m/131 ft |
| Camera video formats |
H.265, H.264 and MJPEG |
| NVR compression |
H.265, H.264 and Smart Codec |
| Analytics |
Human/vehicle SMD, intrusion, loitering, people counting and tampering detection |
| Camera audio interface |
One line input and one line output; external equipment required |
| Camera alarm interface |
One input and one output; external equipment required |
| Camera power |
PoE IEEE 802.3af or 12V DC |
| Display outputs |
HDMI and VGA |
| Remote access |
Honeywell Smart Viewer and HSV Mobile App |
| Camera protection |
IP66 and IP67 |
| Camera operating temperature |
-40°F to 140°F (-40°C to 60°C) |
| Compliance |
NDAA Section 889 |
| Camera color |
White with black face |
