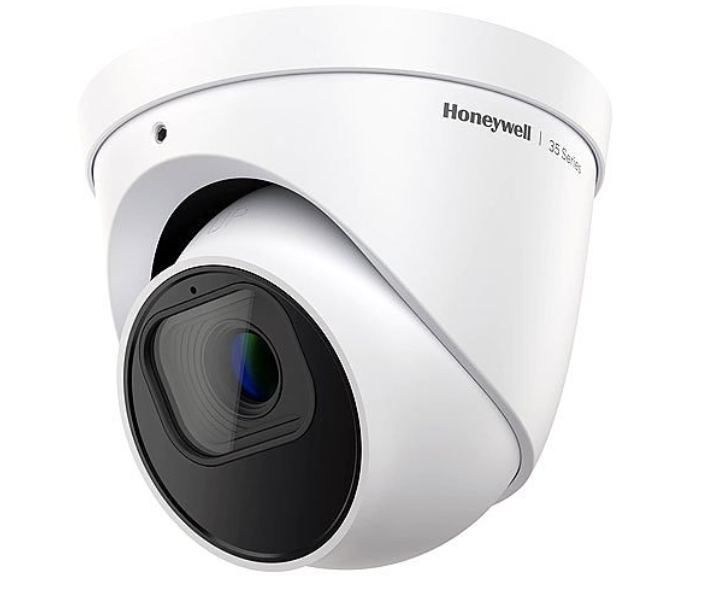

Honeywell HC35WE5R3 35 Series 5MP AI IR WDR Fixed Ball/Turret IP Camera, 2.8mm Lens, PoE, White

The Honeywell HC35WE5R3 35 Series is a 5MP fixed ball-style turret IP camera designed for dependable indoor and outdoor video surveillance. It records high-resolution video up to 2592 × 1944 at 30 frames per second, providing detailed coverage for retail stores, offices, schools, warehouses, commercial properties and other security-sensitive environments.

Its fixed 2.8mm, f/2.0 lens provides an 88° horizontal field of view for monitoring entrances, rooms, hallways and other broad areas. The ball-style turret design supports flexible positioning with 360° pan, 80° tilt and 360° rotation adjustment during installation.

Honeywell 120dB Wide Dynamic Range preserves important details in scenes containing both bright and dark areas. Backlight compensation, highlight compensation, defog and 2D/3D digital noise reduction further improve video usability in challenging lighting and weather conditions.

Three integrated Smart IR illuminators provide night vision at distances up to approximately 131 feet. Automatic IR control adjusts illumination levels to help prevent nearby subjects from appearing overexposed, while true day/night operation provides color video during the day and clear black-and-white images in complete darkness.

Honeywell Smart Motion Detection uses human and vehicle classification to help reduce false alarms caused by weather, foliage and other irrelevant movement. Additional analytics include intrusion detection, multi-loitering detection, people counting, tampering detection and standard motion detection.

The HC35WE5R3 supports one alarm input and one alarm output for integration with compatible local alarm devices. Line-level audio input and output connections enable two-way, full-duplex audio when compatible external audio equipment is connected.

H.265, H.264 and Motion JPEG compression provide flexible video-streaming options. Honeywell Smart Codec helps reduce bandwidth and storage requirements, while three configurable video streams support different recording and viewing needs. An onboard microSD card slot supports local edge recording on cards up to 256GB.

The camera can be powered through IEEE 802.3af Power over Ethernet or a separate 12V DC power source. PoE simplifies installation by carrying network data and power through one Ethernet cable.

Its IP66- and IP67-rated die-cast aluminum enclosure protects the camera against dust and water. A wide operating range from -40°F to 140°F makes it suitable for demanding indoor and outdoor environments.

The Honeywell 35 Series is compliant with Section 889 of the U.S. National Defense Authorization Act. Security features include HTTPS, TLS 1.2, AES 128/256 stream encryption, IP filtering and password-protected user accounts.

ADI lists the HC35WE5R3 as a replacement option for Honeywell models HEW4PER3, HEW4PER3B, HEW4PER3V and HD30HD4. Mounting, accessory and system compatibility should be confirmed before replacing an existing camera.

Main Features

• 5MP resolution up to 2592 × 1944
• Records at up to 30 frames per second
• Fixed 2.8mm, f/2.0 wide-angle lens
• 88° horizontal and 65° vertical field of view
• Ball-style turret design with flexible positioning
• 360° pan, 80° tilt and 360° rotation adjustment
• 120dB Wide Dynamic Range
• Backlight and highlight compensation
• Defog image enhancement
• 2D and 3D digital noise reduction
• Three integrated Smart IR illuminators
• Infrared night vision up to approximately 131 feet
• True day/night operation with removable IR-cut filter
• Smart human and vehicle motion detection
• People-counting analytics
• Multi-loitering and intrusion detection
• Tampering and standard motion detection
• H.265, H.264 and Motion JPEG compression
• Honeywell Smart Codec
• Three configurable video streams
• Two-way, full-duplex audio support
• One audio input and one audio output
• One alarm input and one alarm output
• microSD card storage support up to 256GB
• IEEE 802.3af Power over Ethernet
• Alternative 12V DC power input
• ONVIF Profiles G, S and T compatible
• IP66- and IP67-rated weather protection
• NDAA Section 889 compliant
• RoHS compliant
• Suitable for indoor and outdoor surveillance

Recommended Applications

• Retail stores and shopping centers
• Offices and commercial buildings
• Schools and university campuses
• Warehouses and distribution facilities
• Building entrances and common areas
• Parking garages and covered parking areas
• Healthcare and professional facilities
• Industrial and manufacturing properties
• Residential and multifamily communities
• Small and medium-sized businesses

Technical Specifications

• Manufacturer: Honeywell International
• Brand: Honeywell Commercial Security
• Product Series: Honeywell 35 Series
• Model: HC35WE5R3
• UPC: 085267356008
• Camera Type: Fixed ball-style turret IP camera
• Recommended Environment: Indoor or outdoor
• Image Sensor: 1/2.8-inch progressive-scan CMOS
• Effective Resolution: 5MP
• Maximum Resolution: 2592 × 1944
• Maximum Frame Rate: 30 fps
• Lens: Fixed 2.8mm
• Maximum Aperture: f/2.0
• Horizontal Field of View: 88°
• Vertical Field of View: 65°
• Pan Adjustment: 0°–360°
• Tilt Adjustment: 0°–80°
• Rotation Adjustment: 0°–360°
• Minimum Illumination: 0.005 lux color; 0 lux with IR on
• Wide Dynamic Range: 120dB
• IR Illumination: Three integrated Smart IR LEDs
• Night-Vision Range: Up to 40 meters or approximately 131 feet
• Video Compression: H.265, H.264 and Motion JPEG
• Audio: Two-way, full-duplex audio support
• Audio Connections: One line input and one line output
• Alarm Connections: One input and one output
• Local Storage: microSD card up to 256GB
• Network Connection: 10/100 Ethernet RJ-45
• Power: IEEE 802.3af PoE or 12V DC
• Maximum Power Consumption: 5.13W
• Ingress Protection: IP66 and IP67
• Operating Temperature: -40°F to 140°F
• Operating Humidity: Less than 90% RH, non-condensing
• Dimensions: Approximately 4.33" diameter × 3.72"H
• Weight: Approximately 1.32 lb.
• Housing: Die-cast aluminum
• Color: Signal white with black lens face
• ONVIF Profiles: G, S and T
• NDAA Compliant: Yes, Section 889
• RoHS Compliant: Yes
• Replacement Options: HEW4PER3, HEW4PER3B, HEW4PER3V and HD30HD4
