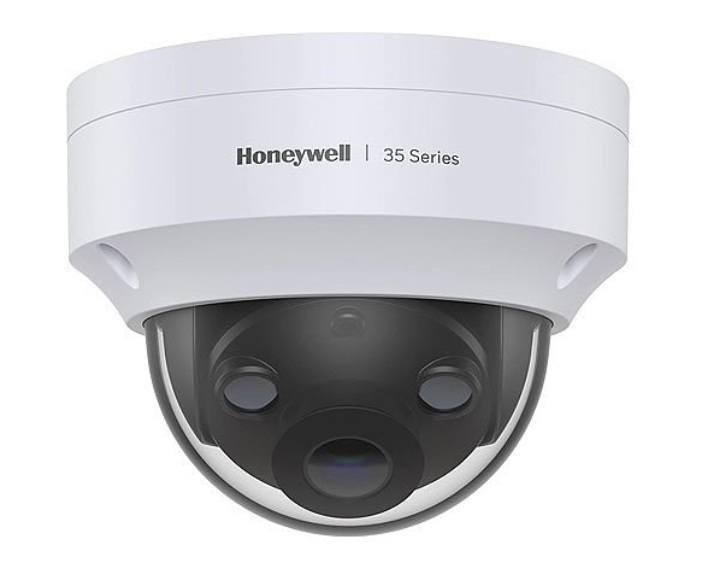

Honeywell HC35W45R3 35 Series 5MP AI WDR IR Rugged Mini Dome IP Camera, 2.8mm Lens, PoE, White

The Honeywell HC35W45R3 35 Series is a rugged 5MP fixed-dome IP camera designed for dependable indoor and outdoor video surveillance. It captures high-resolution video up to 2592 × 1944 at 30 frames per second, providing the image clarity needed to monitor commercial buildings, warehouses, schools, retail stores, parking areas and other security-sensitive locations.

Its fixed 2.8mm, f/2.0 lens provides a wide 93° horizontal field of view for monitoring entrances, hallways, rooms and other broad areas. Honeywell 120dB Wide Dynamic Range preserves important details in scenes containing both bright and dark areas, while 2D and 3D digital noise reduction help produce cleaner video in difficult lighting.

Two integrated Smart IR illuminators provide night vision at distances up to approximately 131 feet. Automatic infrared control adjusts the illumination to help prevent overexposed subjects and deliver usable black-and-white video in complete darkness.

AI-based smart motion detection distinguishes between people and vehicles, helping reduce false alarms caused by weather, foliage and other irrelevant movement. The camera also supports local alarm integration through one alarm input and one alarm output. Audio input and output connections enable two-way audio when compatible external audio equipment is connected.

H.265, H.264 and Motion JPEG compression provide flexible streaming options. Honeywell Smart Codec technology helps reduce bandwidth and storage usage, while an onboard microSD card slot supports local edge recording on cards up to 256GB.

The camera can be powered through IEEE 802.3af Power over Ethernet or a separate 12V DC power source. PoE simplifies installation by transmitting power and network data through one Ethernet cable.

An IP66- and IP67-rated enclosure protects the camera against dust and water, while its IK10-rated die-cast aluminum housing provides resistance to impact and vandalism. The camera operates in temperatures from -40°F to 140°F, making it suitable for demanding indoor and outdoor environments.

The Honeywell HC35W45R3 is TAA compliant and is commonly listed as a replacement option for the Honeywell HC30W45R3. Mounting, accessory and system compatibility should be confirmed when replacing an existing camera.

Main Features

• 5MP video resolution up to 2592 × 1944
• Records at up to 30 frames per second
• Fixed 2.8mm, f/2.0 wide-angle lens
• 93° horizontal and 68° vertical field of view
• 120dB Wide Dynamic Range
• 2D and 3D digital noise reduction
• Smart IR night vision up to approximately 131 feet
• Automatic day/night operation with removable IR-cut filter
• AI-based human and vehicle detection
• Smart motion detection helps reduce false alarms
• Supports intrusion, loitering and people-counting analytics
• H.265, H.264 and Motion JPEG video compression
• Honeywell Smart Codec for reduced bandwidth and storage usage
• Two-way audio support using external audio equipment
• One audio input and one audio output
• One alarm input and one alarm output
• microSD card storage support up to 256GB
• Power over Ethernet or 12V DC operation
• ONVIF Profiles G, S and T compatible
• IP66- and IP67-rated weather protection
• IK10 vandal-resistant enclosure
• Wide operating range from -40°F to 140°F
• TAA compliant
• Suitable for indoor and outdoor installation
• Common replacement option for the Honeywell HC30W45R3

Recommended Applications

• Commercial buildings and offices
• Retail stores and shopping centers
• Warehouses and distribution facilities
• Schools and university campuses
• Healthcare and professional facilities
• Parking areas and garages
• Building entrances and exits
• Hallways and common areas
• Industrial and manufacturing facilities
• Residential and multifamily properties

Technical Specifications

• Manufacturer: Honeywell International
• Brand: Honeywell Commercial Security
• Product Series: Honeywell 35 Series
• Model: HC35W45R3
• UPC: 085267019002
• Camera Type: Fixed rugged mini dome IP camera
• Recommended Environment: Indoor or outdoor
• Image Sensor: 1/2.8-inch progressive-scan CMOS
• Effective Resolution: 5MP
• Maximum Resolution: 2592 × 1944
• Maximum Frame Rate: 30 fps
• Lens: Fixed 2.8mm
• Maximum Aperture: f/2.0
• Horizontal Field of View: 93°
• Vertical Field of View: 68°
• Minimum Illumination: 0.007 lux color; 0 lux with IR on
• Wide Dynamic Range: 120dB
• IR Illumination: Two integrated Smart IR LEDs
• Night-Vision Range: Up to 131 feet
• Video Compression: H.265, H.264 and Motion JPEG
• Audio: Two-way, full-duplex audio support
• Audio Connections: One line input and one line output
• Alarm Connections: One input and one output
• Local Storage: microSD, microSDHC and microSDXC up to 256GB
• Network Connection: RJ-45 Ethernet
• Power: IEEE 802.3af PoE or 12V DC
• Maximum Power Consumption: Approximately 4.08W
• Ingress Protection: IP66 and IP67
• Impact Resistance: IK10
• Operating Temperature: -40°F to 140°F
• Maximum Operating Humidity: 90% RH
• Dimensions: Approximately 4.33" diameter × 3.37"H
• Weight: Approximately 1.23 lb.
• Housing: Die-cast aluminum
• Color: White
• ONVIF Profiles: G, S and T
• TAA Compliant: Yes
• Replacement For: Honeywell HC30W45R3
