HES 9600-12/24D-630 9600 Series Surface Mounted Electric Strike, Windstorm Resistant, Satin Stainless Steel
Product Overview

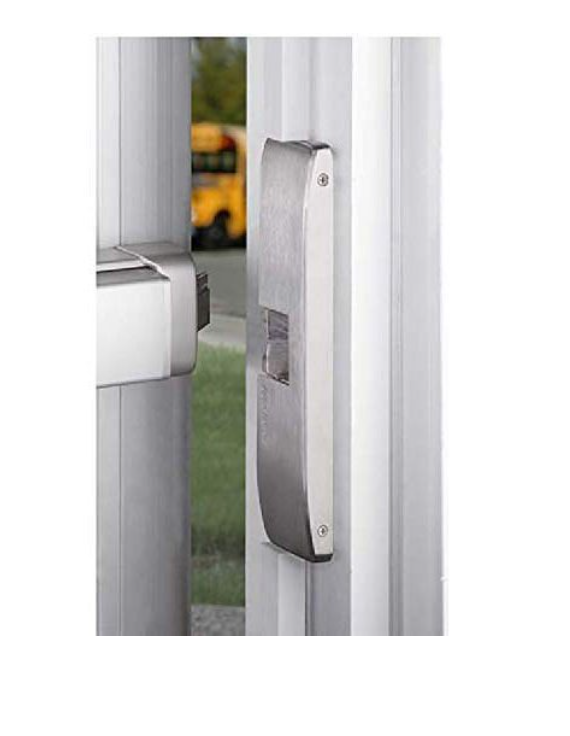

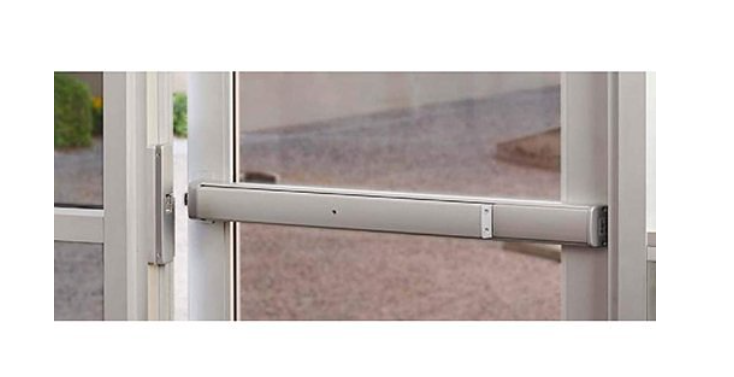

The HES 9600-630 is a heavy-duty, windstorm-rated surface-mounted electric strike designed for rim exit devices with a 3/4-inch throw latchbolt. Its no-cut design mounts directly to the surface of a compatible door frame, helping simplify new access-control installations and retrofit projects.

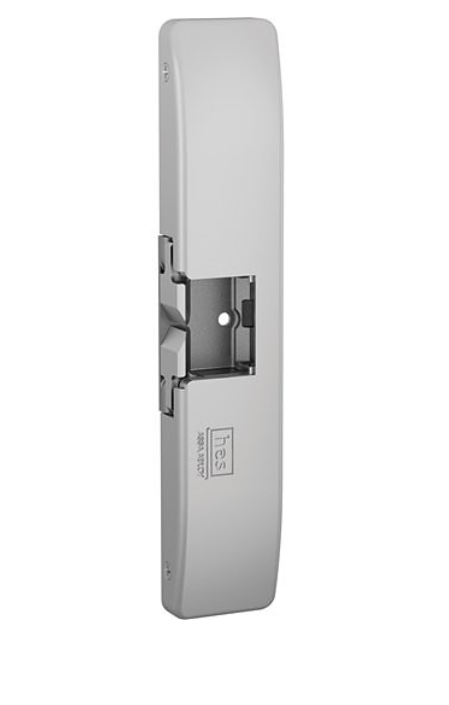

All operating components are enclosed within a durable 3/4-inch-thick stainless steel housing. A separate mounting base and decorative cover permit horizontal adjustment and help protect the mounting hardware against tampering.
The non-handed HES 9600 can be installed on aluminum, metal, or wood frames. Installers can select 12VDC or 24VDC operation and configure the strike for either fail-secure or fail-safe operation in the field. This 630 version features a satin stainless-steel finish and is rated for outdoor use.
Main Features
- Surface-mounted design requires no cutting into the door frame
- Designed for rim exit devices with a 3/4-inch throw latchbolt
- Installs on compatible aluminum, metal, and wood frames
- Windstorm-rated construction for demanding exterior openings
- Suitable for outdoor use
- Field-selectable 12VDC or 24VDC operation
- Field-selectable fail-secure or fail-safe operation
- Non-handed design
- Horizontal adjustability for proper latch alignment
- Separate mounting base and decorative cover
- Tamper-resistant stainless-steel construction
- Internally mounted solenoid
- Static strength rated at 2,000 pounds
- Dynamic strength rated at 120 ft-lb
- Endurance tested to 1,000,000 cycles
- Satin stainless-steel 630 finish
Compatibility and Installation Notes
The HES 9600-630 is intended for compatible rim exit devices with a 3/4-inch throw latchbolt. Verify the exit-device latch geometry, frame condition, door alignment, voltage, life-safety requirements, and local building codes before ordering or installing the strike.
No frame cutting is normally required. The mounting base is positioned on the surface of the frame and aligned with the exit-device latchbolt before the decorative cover is installed.
Wood screws are not included. Additional mounting hardware may be required for wood frames or specific frame conditions.
This model is windstorm rated but is not fire rated. Do not use it on a fire-rated opening unless the complete door assembly and installed hardware have been approved for that specific application.
Professional installation by a qualified access-control or door-hardware technician is recommended.
Product Specifications
| Specification | Details |
|---|---|
| Brand | HES by ASSA ABLOY |
| Manufacturer | ASSA ABLOY |
| Manufacturer Part Number | 9600-630 |
| Alternate Product Reference | 9600-12/24D-630 |
| Product Series | 9600 Series |
| Product Type | Surface-mounted electric strike |
| Compatible Lock Type | Rim exit device |
| Latchbolt Accommodation | 3/4-inch throw latchbolt |
| Compatible Frame Materials | Aluminum, metal, and wood |
| Mounting Type | Surface mount |
| Door Handling | Non-handed |
| Operating Mode | Field-selectable fail secure or fail safe |
| Input Voltage | 12VDC or 24VDC |
| Current Draw at 12VDC | 450mA |
| Current Draw at 24VDC | 250mA |
| Static Strength | 2,000 lb |
| Dynamic Strength | 120 ft-lb |
| Endurance | 1,000,000 cycles |
| Adjustability | Horizontal |
| Material | Stainless steel |
| Finish | 630 satin stainless steel |
| Color | Silver |
| Outdoor Rated | Yes |
| Windstorm Rated | Yes |
| Fire Rated | No |
| Dimensions | 9"H × 1.75"W × 0.75"D |
