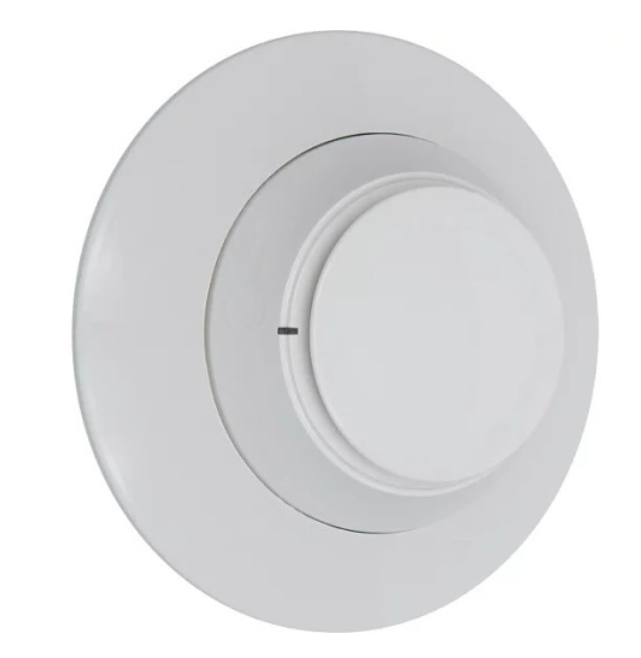

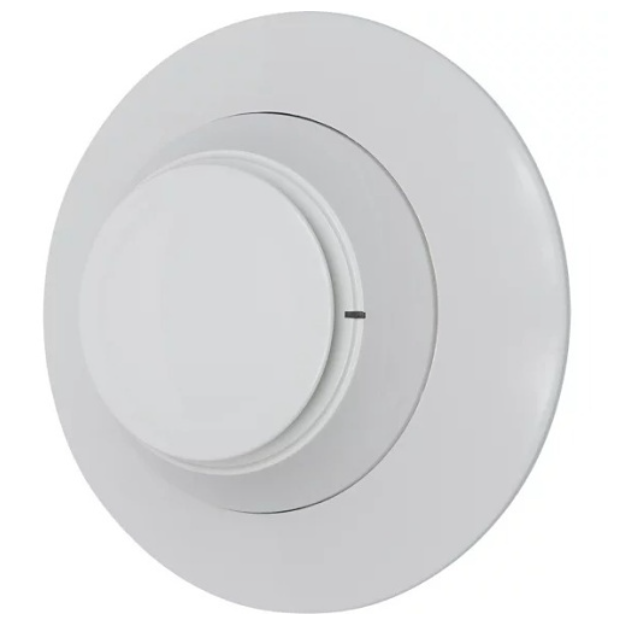

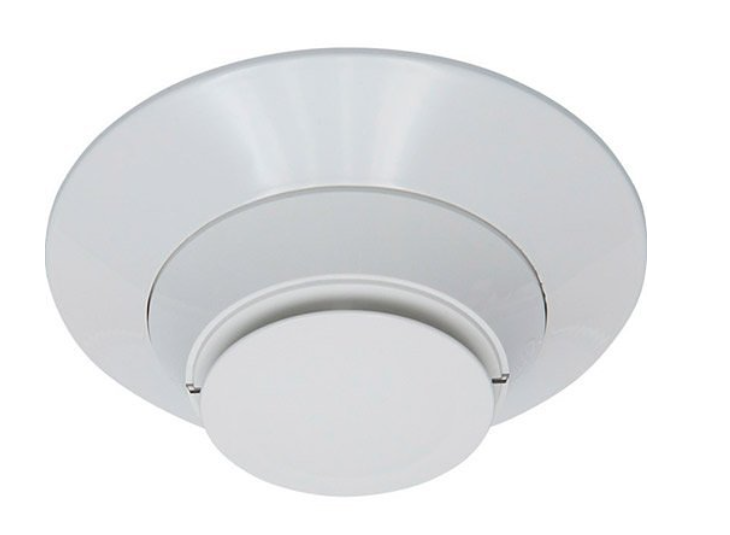

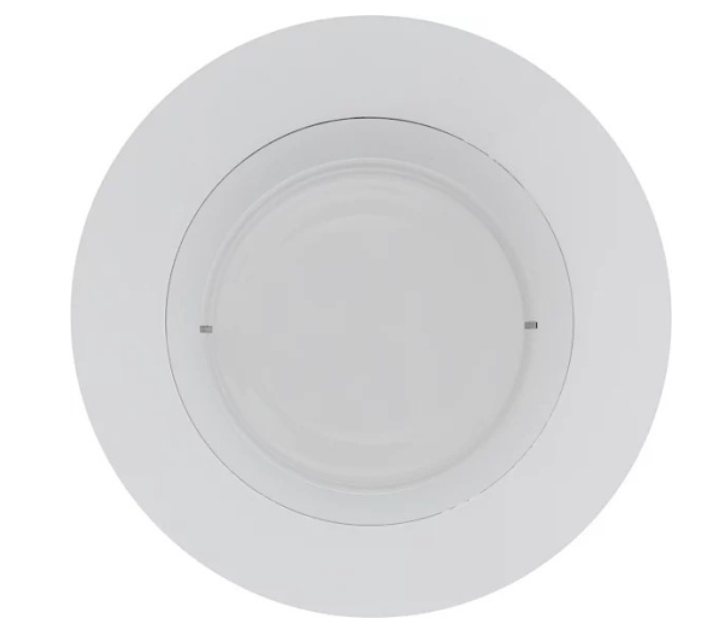

Fire-Lite SD365 LiteSpeed Addressable Photoelectric Smoke Detector with Base, White
The Fire-Lite SD365 is a low-profile, addressable photoelectric smoke detector designed exclusively for compatible Fire-Lite addressable fire alarm control panels operating with the LiteSpeed protocol. Its enhanced optical sensing chamber is engineered to detect smoke from a broad range of combustion sources while meeting modern commercial fire-detection requirements.
The detector connects directly to a two-wire signaling line circuit (SLC). Rotary decimal address switches give each detector a unique point identification, allowing the fire alarm panel to report the device’s precise programmed location. Dual LEDs provide highly visible status indication: they blink during panel polling and latch on when an alarm is activated.
A detachable mounting base, SEMS wiring screws, removable cover and insect-resistant screen help simplify installation, inspection and field maintenance. The SD365 also supports magnetic functional testing, panel-based sensitivity testing and walk testing when used with a compatible Fire-Lite system.
Main Features
- Addressable photoelectric smoke detection
- Designed for Fire-Lite LiteSpeed SLC systems
- Two-wire SLC loop connection
- Rotary decimal address switches
- Point identification for precise detector-location reporting
- Enhanced optical sensing chamber
- Factory-preset 1.5% nominal alarm threshold
- Dual polling and alarm-status LEDs
- Built-in tamper-resistant feature
- Functional testing using an external test magnet
- Walk-test support with address display
- Removable cover and insect-resistant screen
- Low 200 µA standby-current draw at 24V DC
- Sealed against back pressure
- Detachable base with SEMS wiring screws
- Surface- or electrical-box mounting
- Remote LED annunciator output
- Designed to meet UL 268, 7th Edition requirements
Compatibility and Replacement Notice
The SD365 is a LiteSpeed-only detector and must be used with a compatible Fire-Lite addressable fire alarm control panel. It is identified as a replacement for the legacy SD355, but it should not be treated as a universal drop-in replacement for every SD355 installation. Please note Honeywell identities the SD365 Series as discontinued.
Before ordering, verify the fire alarm control panel model, firmware, SLC operating protocol and approved device-compatibility documentation. Legacy systems operating only in CLIP mode may not support the white SD365. The separately sold ivory SD365-IV is the variant listed for both LiteSpeed and CLIP operation. Fire-Lite’s current panel documentation identifies the SD365 as LiteSpeed-only and the SD355 as a legacy device.
-
What’s Included
- 1 × Fire-Lite SD365 smoke-detector head
- 1 × B300-6 white, 6-inch flanged low-profile mounting base
-
Recommended Applications
- Compatible Fire-Lite addressable fire alarm systems
- Commercial and institutional fire detection
- Offices, schools and retail facilities
- Hotels and multifamily common areas
- Healthcare and government facilities
- Professionally designed SD355 replacement projects
- New or existing LiteSpeed SLC installations
This is a system-connected commercial fire detector. It is not a standalone residential smoke alarm and does not contain an integral sounder, heat sensor or carbon-monoxide sensor.
