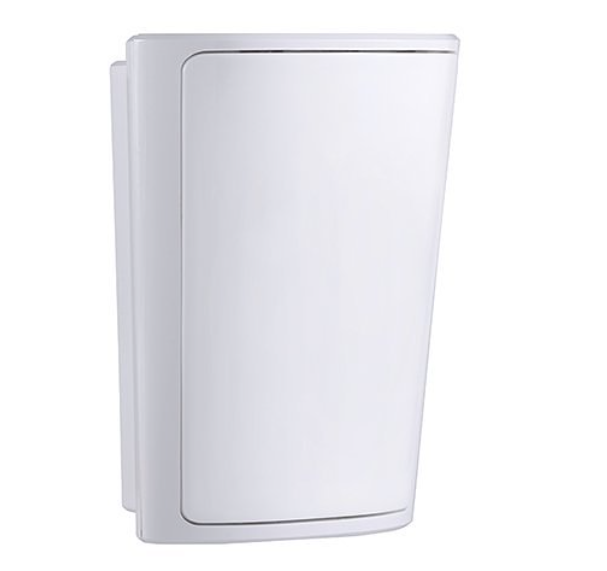

DSC PG9914 PowerG 915 MHz Pet-Immune PIR Motion Sensor, 39 ft, White

The DSC PG9914 is a wireless indoor passive infrared motion detector designed for compatible 915 MHz PowerG security systems. It combines motion detection, pet-immunity technology and supported temperature reporting in a compact white housing suitable for residential and commercial intrusion protection.

Target Specific Imaging technology distinguishes between people and pets weighing up to 85 pounds when the detector is installed according to DSC’s placement instructions. The advanced True Motion Recognition algorithm analyzes movement to differentiate potential intruders from environmental disturbances that could otherwise produce false alarms.

Fresnel and cylindrical lenses provide uniform 90-degree coverage extending up to 39 × 39 feet, without requiring vertical lens adjustment. Two remotely selectable sensitivity settings allow the system to trigger an alarm after either one motion event or two consecutive events.

PowerG two-way wireless communication provides supervised communication, adaptive transmission and remote device configuration. The included CR123A lithium battery provides an estimated six to eight years of service under typical operating conditions.

Main Features

• Indoor wireless PIR motion detector
• North American 915 MHz PowerG model
• Two-way supervised PowerG communication
• Maximum coverage of 39 × 39 feet
• 90-degree horizontal detection pattern
• Pet immunity for pets weighing up to 85 pounds
• Target Specific Imaging technology
• Advanced True Motion Recognition algorithm
• Fresnel and cylindrical detection lenses
• Uniform sensitivity across the coverage area
• No vertical lens adjustment required
• High and low selectable sensitivity settings
• Motion-event counter for one- or two-event activation
• Temperature reporting with supported systems
• Light-level reporting with compatible control panels
• Microprocessor-controlled temperature compensation
• Front and back tamper protection
• Low-battery reporting
• Local signal-strength diagnostic LEDs
• Surface- or corner-mount installation
• Estimated battery life of six to eight years

• Pet-Immunity Information

  Pet immunity applies to animals weighing up to 85 pounds when the detector is mounted and configured according to DSC’s instructions. The recommended installation height for pet immunity is approximately seven feet.

  At an installation height of approximately 7.9 feet, DSC instructs installers to remove the pet mask; pet immunity is not supported at that height. Pet behavior, furniture placement, stairs and the detector’s viewing angle can also affect performance. Pet immunity has not been evaluated by UL.

  Temperature-Monitoring Notice

  The PG9914 can transmit temperature and light-level information, but the availability and presentation of this data depend on the connected control panel, firmware and user application. DSC specifically identifies temperature display through the user application when the detector is enrolled with a supported PowerSeries Pro system.

  The temperature feature supplements the motion detector’s primary intrusion function. It should not be represented as a dedicated thermostat, freeze detector or life-safety temperature sensor.

  System Compatibility

  The PG9914 is compatible with supported North American PowerG systems using the 912–919 MHz band, commonly marketed as 915 MHz. Compatible platforms include:

  • DSC PowerSeries Neo
  • DSC PowerSeries Pro
  • Qolsys IQ panels equipped with a compatible PowerG radio
  • Compatible DSC PowerG receivers and RF keypads
  • PG9920 PowerG repeater-supported installations

  Compatible DSC receivers include the HSM2HOST9, HS2LCDRF9, HS2LCDRFP9 and HS2ICNRF9 families. The manufacturer identifies the PG9914 as compatible with PowerSeries Neo, PowerSeries Pro and supported Qolsys panels.

• Important Compatibility Notice

  The PG9914 is the North and Latin American PowerG model operating within the 912–919 MHz band. It is not interchangeable with PG4914 433 MHz or PG8914 868 MHz regional models.

  This detector does not connect directly to Wi-Fi or a mobile application. Remote alerts and temperature display require a compatible PowerG alarm panel, communicator and applicable interactive-services plan.

  What’s Included

  • 1 × DSC PG9914 motion detector
  • 1 × 3V CR123A lithium battery
  • Surface/corner mounting bracket
  • Mounting hardware
  • Installation instructions

  Recommended Applications

  • Homes with dogs or cats
  • Living rooms and family rooms
  • Hallways and entrance areas
  • Offices and small businesses
  • Retail spaces
  • PowerSeries Neo expansions
  • PowerSeries Pro installations
  • Compatible Qolsys IQ Panel systems

    Technical Specifications

    Specification	Details
    Brand	DSC
    Manufacturer	Johnson Controls
    Model	PG9914
    Product series	PowerG
    Product type	Wireless PIR motion detector
    Application	Indoor intrusion detection
    Sensor	Dual-element, low-noise pyroelectric PIR
    Communication protocol	PowerG two-way wireless
    Regional frequency	915 MHz
    Operating frequency band	912–919 MHz
    Maximum coverage	39 × 39 ft (12 × 12 m)
    Detection angle	90°
    Pet immunity	Up to 85 lb (38 kg)
    Sensitivity settings	High or low
    Temperature reporting	Yes, with supported systems
    Light-level reporting	Yes, with supported systems
    Tamper protection	Front and back
    Supervision interval	Four minutes
    Alarm period	Two seconds
    Battery	One 3V CR123A lithium battery
    Nominal battery capacity	1,450 mAh
    Estimated battery life	6–8 years under typical use
    Low-battery threshold	2.4V
    Recommended mounting height	6–8 ft; approximately 7 ft for pet immunity
    Mounting options	Surface or corner
    Operating temperature	14°F–122°F (-10°C–50°C)
    Storage temperature	-4°F–140°F (-20°C–60°C)
    Dimensions	3.27 × 2.40 × 1.66 in.
    Weight with battery	3.17 oz (90 g)
    Color	White
    Listings	UL 639 and ULC-S306
    Regulatory compliance	FCC Part 15 and ISED RSS-247
    UPC	7290107557962
