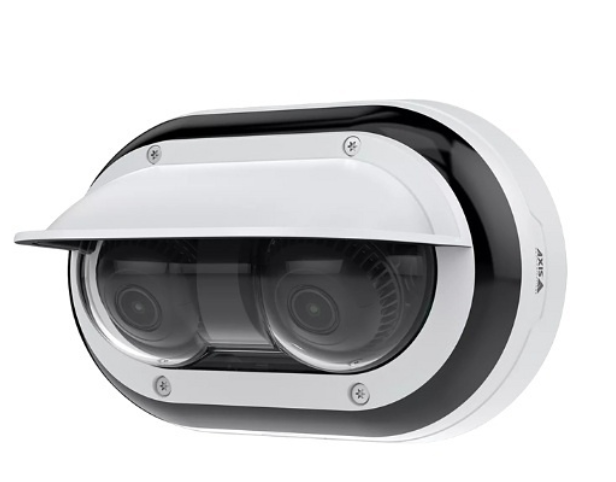

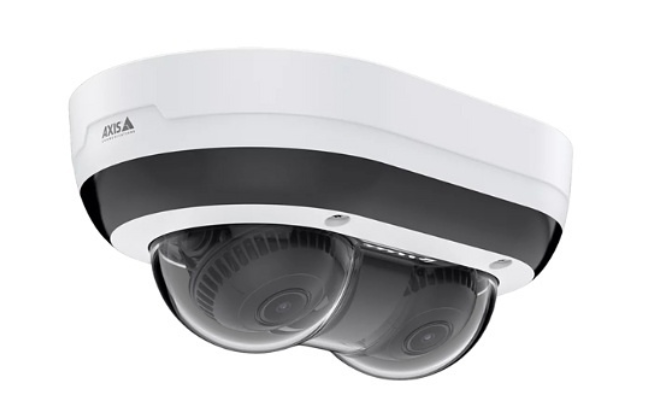

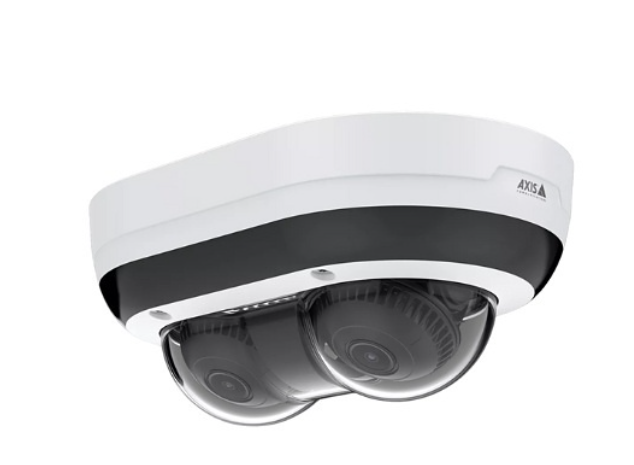

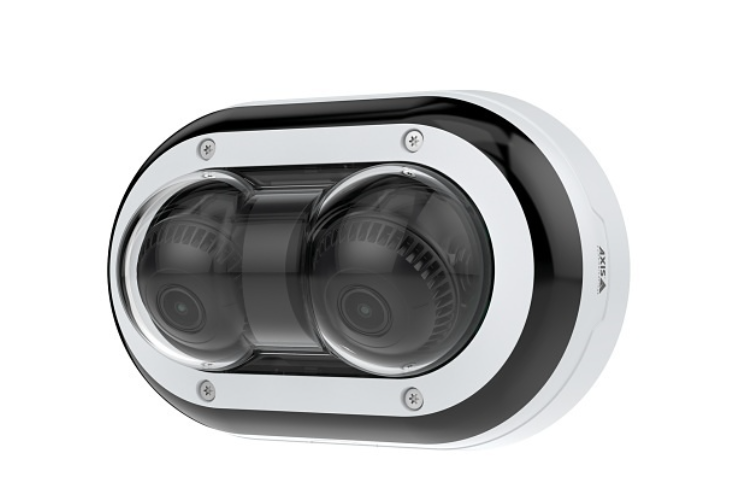

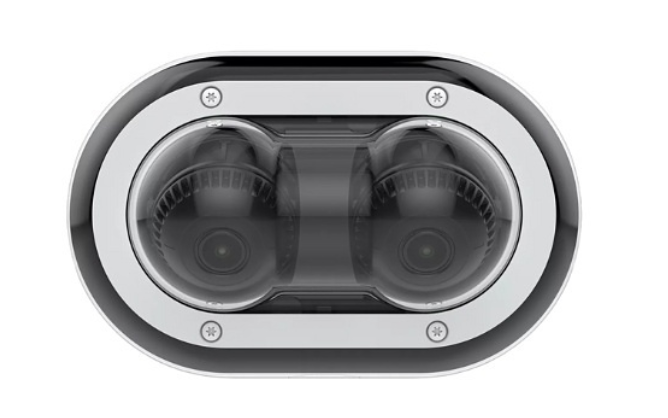

AXIS P4707-PLVE Dual-Sensor 2 × 5MP Panoramic IP Camera with 360° IR, 3.26–8.12mm Lens, Black/White – 02416-001

The AXIS P4707-PLVE (02416-001) is an outdoor-ready, multidirectional panoramic IP camera equipped with two independently adjustable 5MP sensors. The dual-camera design lets users monitor two directions simultaneously while using one network cable, one IP address and a streamlined camera installation.

Each sensor captures video at resolutions up to 2592 × 1944 and up to 30 frames per second. Flexible 3.26–8.12mm varifocal lenses provide 2.5x optical zoom, while remote zoom and focus allow installers to configure both camera heads without hands-on lens adjustments.

Built-in 360° OptimizedIR illumination provides visibility up to approximately 50 feet in low light or complete darkness. AXIS Lightfinder captures clear color video in near-dark conditions, while Forensic WDR preserves important details in scenes containing both bright and shadowed areas.

The camera is powered by the AXIS ARTPEC-8 system-on-chip and includes a deep learning processing unit. This enables advanced edge-based analytics on both sensors, reducing the need to send all data to a separate server for analysis. Preinstalled AXIS Object Analytics can detect and classify people and vehicles, while detailed scene metadata supports faster forensic searches in live or recorded video.

AXIS Zipstream technology works with H.264 and H.265 compression to reduce bandwidth and storage requirements while retaining important forensic detail. Video can be recorded to a microSD card or compatible network-attached storage system.

An IP66-, IP67-, NEMA 4X- and IK10-rated enclosure protects the camera against rain, dust, water and impact, making it suitable for demanding indoor and outdoor surveillance applications. Power over Ethernet carries power and network data through one cable for a more efficient installation.

Main Features

• Two independently adjustable 5MP camera sensors
• Up to 2592 × 1944 resolution per sensor
• Records at up to 30 frames per second
• Uses one IP address for both camera channels
• Two 3.26–8.12mm varifocal lenses
• 2.5x optical zoom with remote zoom and focus
• 360° AXIS OptimizedIR illumination
• Infrared night-vision range of approximately 50 feet
• AXIS Lightfinder for clear color video in low light
• AXIS Forensic WDR for scenes with bright and dark areas
• ARTPEC-8 system-on-chip
• Deep learning processing on both sensors
• Preinstalled AXIS Object Analytics
• Detection and classification of people and vehicles
• Edge-generated metadata for efficient forensic searches
• AXIS Zipstream with H.264 and H.265 compression
• Audio input for an optional external microphone
• Power over Ethernet for simplified cabling
• Local microSD card and network storage support
• IP66- and IP67-rated weather protection
• NEMA 4X-rated enclosure
• IK10 vandal-resistant construction
• Outdoor-ready design
• ONVIF Profiles G, M, S and T compliant
• Secure boot, signed operating system and Axis Edge Vault

What’s Included

• AXIS P4707-PLVE panoramic camera
• Installation guide
• Windows decoder one-user license
• Connector kit
• Weathershield
• Connector guard

Recommended Applications

• Building exteriors and perimeters
• Parking lots and parking garages
• Warehouses and distribution facilities
• Retail stores and shopping centers
• Schools and campuses
• Transportation facilities
• Loading docks and service areas
• Long hallways and corridors
• Intersections and building corners
• Commercial and industrial properties

Technical Specifications

• Manufacturer: Axis Communications
• Model: AXIS P4707-PLVE
• UPC: 7331021076969
• Product Type: Dual-sensor multidirectional panoramic IP camera
• Number of Sensors: 2
• Image Sensors: Two 1/2.7-inch progressive-scan CMOS sensors
• Resolution: Up to 2592 × 1944 per sensor
• Frame Rate: Up to 30 fps
• Lenses: Two 3.26–8.12mm varifocal lenses
• Aperture: f/1.9–f/3.2
• Optical Zoom: 2.5x
• Horizontal Field of View: Approximately 98°–36° per sensor
• Vertical Field of View: Approximately 69°–27° per sensor
• Minimum Illumination: 0.19 lux color; 0 lux black and white with IR
• IR Illumination: 360° AXIS OptimizedIR
• IR Range: Approximately 50 feet, depending on the scene
• Video Compression: H.264, H.265 and Motion JPEG
• Network Connection: RJ-45 Ethernet
• Power: IEEE 802.3at Type 2 PoE, Class 4
• Maximum Power Consumption: 17.5W with IR illumination
• Audio: External microphone or line-level input; microphone not included
• Local Storage: microSD, microSDHC and microSDXC card support
• Network Storage: Network-attached storage support
• Ingress Protection: IP66 and IP67
• Vandal Resistance: IK10
• Environmental Rating: NEMA 4X
• Operating Temperature: -22°F to 122°F
• Dimensions: 8.2"L × 5.2"W × 3.5"H
• Weight: Approximately 2.1 lb.
• Color: Black and white
• ONVIF Profiles: G, M, S and T
