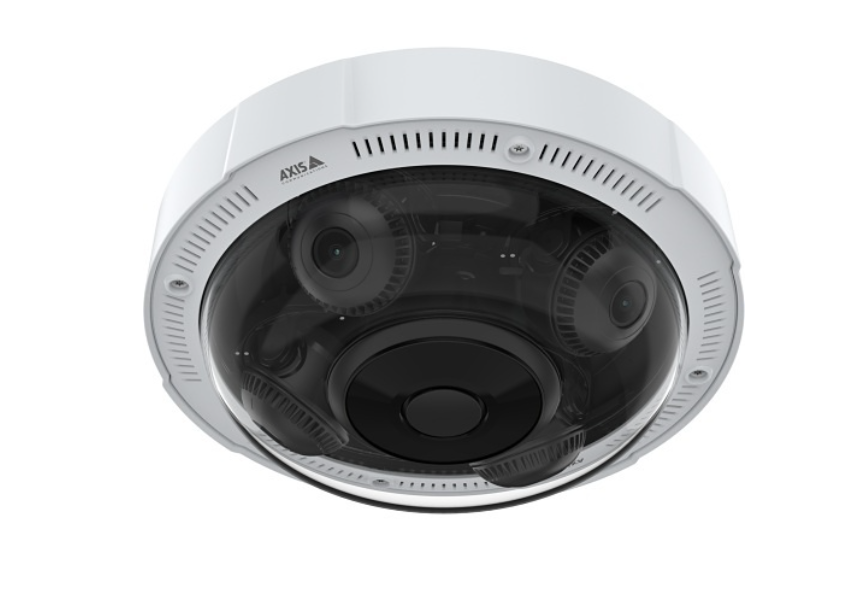

AXIS P3735-PLE 4 × 2MP AI Multidirectional Panoramic IP Camera, 3.2–8.1mm Lenses, 360° IR, White – 02633-001

The AXIS P3735-PLE (02633-001) is an outdoor-ready, multidirectional panoramic IP camera featuring four independently adjustable 2MP camera heads. It provides broad coverage in multiple directions while requiring only one physical camera, one network cable, one IP address and one video-management-system license.

Each channel captures Full HD 1920 × 1080 video at up to 30 frames per second. Four 3.18–8.12mm varifocal lenses provide flexible wide-angle and detailed views, while remote zoom and focus simplify installation and eliminate the need for hands-on lens adjustments.

When ceiling-mounted, the four adjustable camera heads can deliver complete 360° visual coverage. Corner installation can provide approximately 270° coverage, and the heads can be repositioned to monitor four separate directions or capture wide and close-up views of the same area.

Built-in 360° AXIS OptimizedIR uses individually controllable infrared LEDs to deliver clear, reflection-free video in low light or complete darkness. The IR illumination has a range of approximately 98 feet, depending on the monitored environment. AXIS Lightfinder enhances color video in low-light conditions, while Forensic WDR preserves important detail in scenes containing both bright and dark areas.

Built on the AXIS ARTPEC-8 system-on-chip, the camera includes a deep learning processing unit that supports AI-powered analytics directly at the edge. Preinstalled AXIS Object Analytics can detect, classify and count people and vehicles across multiple channels. AXIS Scene Metadata also supplies structured data that can accelerate searches through live and recorded video.

AXIS Zipstream works with H.264 and H.265 compression to reduce bandwidth and storage requirements without sacrificing important forensic detail. Video can be recorded to a compatible microSD card or network-attached storage system.

Axis Edge Vault provides hardware-based cybersecurity features that help protect the camera’s identity, integrity and sensitive information. Secure boot and a signed operating system provide additional protection against unauthorized software and device tampering.

The IP66-, IP67-, NEMA 4X- and IK09-rated enclosure protects the camera against dust, rain, snow, water and impact. Its flexible mounting options support wall, ceiling, corner, pendant and optional recessed installations for indoor or outdoor surveillance.

The AXIS P3735-PLE is the manufacturer-designated replacement for the discontinued AXIS P3727-PLE, part number 02218-001.

Main Features

• Four independently adjustable 2MP camera sensors
• Four Full HD 1920 × 1080 video channels
• Records at up to 30 frames per second per channel
• Uses one network cable and one IP address
• Four 3.18–8.12mm varifocal lenses
• Remote zoom and focus on every camera head
• Complete 360° coverage when appropriately ceiling-mounted
• 270° coverage when configured for corner installation
• 360° AXIS OptimizedIR illumination
• Individually controllable infrared LEDs
• IR illumination range of approximately 98 feet
• AXIS Lightfinder for improved color video in low light
• AXIS Forensic WDR for challenging lighting conditions
• Day/night functionality with removable IR-cut filters
• ARTPEC-8 system-on-chip
• Deep learning processing unit for edge-based analytics
• Preinstalled AXIS Object Analytics
• Detects, classifies and counts people and vehicles
• Supports analytics across all four camera channels
• AXIS Scene Metadata for efficient forensic searches
• Axis Edge Vault hardware-based cybersecurity
• Secure boot and signed operating system
• AXIS Zipstream with H.264 and H.265 compression
• Power over Ethernet for simplified installation
• Local microSD card and network storage support
• IP66- and IP67-rated weather protection
• NEMA 4X-rated enclosure
• IK09 impact-resistant construction
• TAA compliant
• Replaces the AXIS P3727-PLE, part number 02218-001

What’s Included

• AXIS P3735-PLE panoramic camera
• Installation guide
• Connector guard
• Cable gaskets

Recommended Applications

• Airports and transportation facilities
• Train and subway stations
• Schools and university campuses
• Shopping centers and retail environments
• Warehouses and distribution centers
• Parking garages and parking facilities
• Building exteriors and perimeters
• Industrial and manufacturing facilities
• Hallway and corridor intersections
• Commercial building lobbies
• Public spaces requiring wide-area surveillance

Technical Specifications

• Manufacturer: Axis Communications
• Model: AXIS P3735-PLE
• UPC: 7331021080621
• Product Type: Multidirectional panoramic IP camera
• Number of Sensors: 4
• Image Sensors: Four 1/2.8-inch progressive-scan CMOS sensors
• Resolution: Up to 1920 × 1080 per channel
• Frame Rate: Up to 30 fps per channel
• Lenses: Four 3.18–8.12mm varifocal lenses
• Aperture: f/1.9–f/3.2
• Horizontal Field of View: Approximately 108°–40° per sensor
• Vertical Field of View: Approximately 55°–23° per sensor
• Minimum Illumination: 0.14 lux color; 0 lux black and white with IR
• IR Illumination: 360° AXIS OptimizedIR
• IR Range: Approximately 98 feet, depending on the scene
• Video Compression: H.264, H.265 and Motion JPEG
• Network Connection: RJ-45 Ethernet
• Power: IEEE 802.3at Type 2 PoE, Class 4
• Maximum Power Consumption: 23.15W with IR illumination
• Local Storage: microSD, microSDHC and microSDXC card support
• Network Storage: Network-attached storage support
• Ingress Protection: IP66 and IP67
• Impact Resistance: IK09
• Environmental Rating: NEMA 4X
• Operating Temperature: -22°F to 122°F
• Weight: Approximately 4.4 lb.
• Color: White
• ONVIF Profiles: G, M, S and T
• TAA Compliant: Yes
• Replacement For: AXIS P3727-PLE, 02218-001
