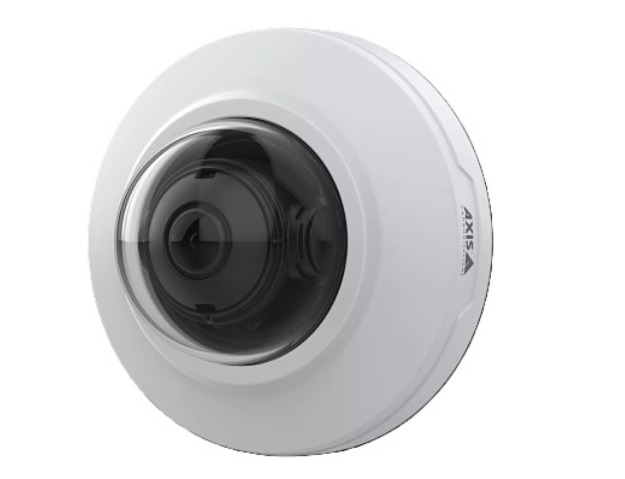

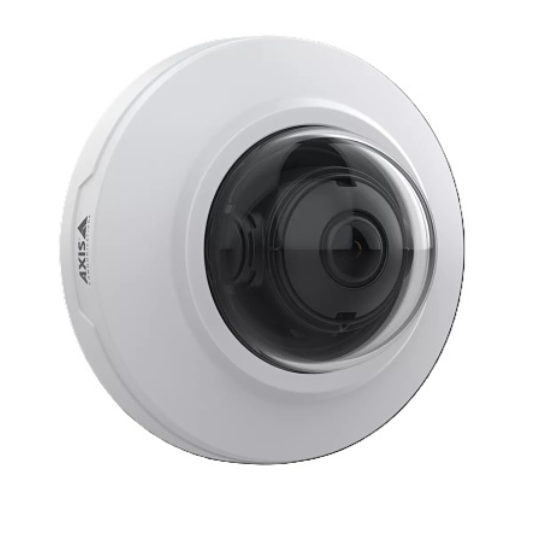

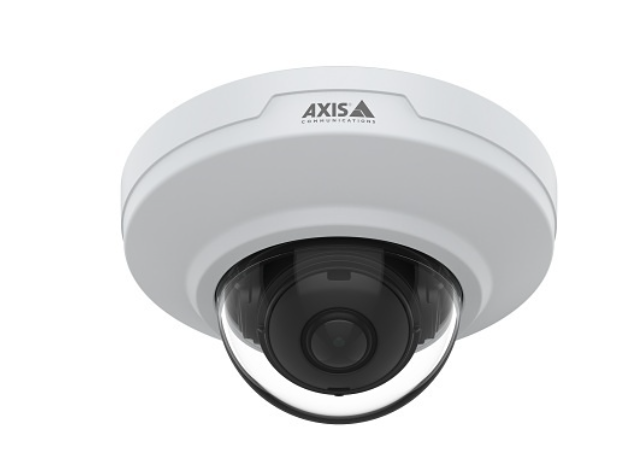

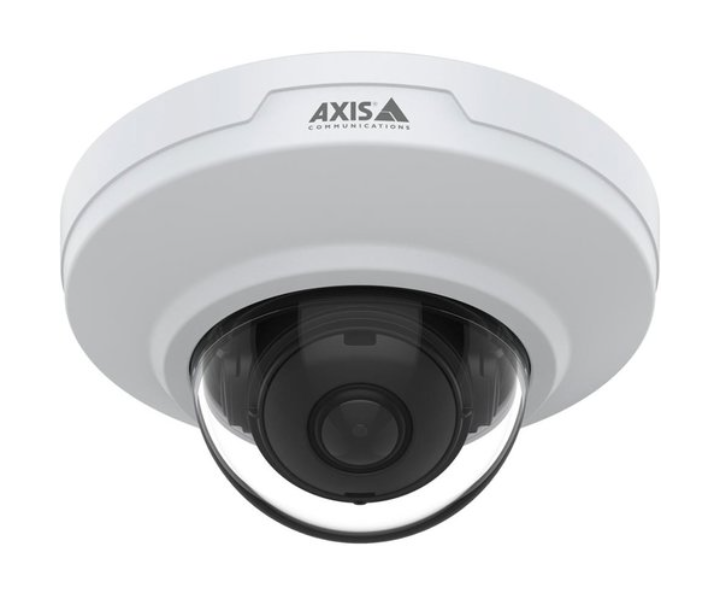

AXIS M3086-V 4MP Fixed Mini Dome IP Camera, 2.4mm Lens, WDR, White – 02374-001 (Replaces M3066-V)

The AXIS M3086-V (02374-001) is a compact 4MP fixed mini dome IP camera designed for discreet indoor video surveillance. Its fixed 2.4mm lens provides a wide 130° horizontal field of view, making it well suited for monitoring entrances, hallways, reception areas, retail stores, offices, schools and other interior spaces.

The camera captures video at resolutions up to 2688 × 1512 and up to 30 frames per second. AXIS Wide Dynamic Range (WDR) balances bright and dark areas in the same scene, while AXIS Lightfinder delivers clear color images in low-light conditions. The lens is factory-focused, eliminating the need for manual focusing during installation.

A built-in deep learning processing unit supports intelligent analytics directly on the camera. Preinstalled AXIS Object Analytics can detect, classify and track objects such as people and vehicles, while detailed metadata helps users conduct faster searches in live or recorded video.

For efficient network operation, AXIS Zipstream technology works with H.264 and H.265 compression to reduce bandwidth and storage requirements without sacrificing important forensic detail. Power over Ethernet simplifies installation by carrying power and network data through one cable, while an onboard memory-card slot supports local edge recording.

AXIS Edge Vault, secure boot, signed operating system and secure key storage help protect the camera and sensitive information from unauthorized access. The IP42- and IK08-rated enclosure provides indoor protection against dust, dripping water, impact, redirection and defocusing.

The AXIS M3086-V is a current replacement option for the previous AXIS M3066-V mini dome camera.

Main Features

• 4MP video resolution up to 2688 × 1512
• Records at up to 30 frames per second
• Fixed 2.4mm, f/2.1 wide-angle lens
• 130° horizontal and 93° vertical field of view
• AXIS Wide Dynamic Range for challenging lighting
• AXIS Lightfinder for clear color video in low light
• Day/night functionality with removable IR-cut filter
• Deep learning processing unit for edge-based analytics
• Preinstalled AXIS Object Analytics
• Detection and classification of people and vehicles
• AXIS Edge Vault hardware-based cybersecurity platform
• Secure boot, signed OS and secure key storage
• AXIS Zipstream with H.264 and H.265 compression
• Power over Ethernet for streamlined installation
• Onboard memory-card slot for edge storage
• Factory-focused lens requires no manual focusing
• IK08 vandal-resistant and IP42-rated indoor enclosure
• ONVIF Profiles G, M, S and T compliant
• TAA compliant
• Replaces the AXIS M3066-V

Recommended Applications

• Retail stores and shopping environments
• Offices and commercial buildings
• Schools and educational facilities
• Healthcare and professional offices
• Lobbies, entrances and reception areas
• Hallways and other indoor common areas
• Residential and multifamily building interiors

Technical Specifications

• Manufacturer: Axis Communications
• UPC: 7331021076648
• Camera Type: Fixed mini dome IP camera
• Recommended Environment: Indoor
• Color: White
• Image Sensor: 1/2.7-inch CMOS
• Maximum Resolution: 2688 × 1512
• Maximum Frame Rate: 25/30 fps
• Lens: Fixed 2.4mm, f/2.1
• Horizontal Field of View: 130°
• Vertical Field of View: 93°
• Minimum Illumination: 0.19 lux color; 0.03 lux black and white
• Video Compression: H.264, H.265 and Motion JPEG
• Network Connection: RJ-45 Ethernet
• Power: Power over Ethernet, PoE Class 2
• Local Storage: Memory-card slot
• Audio: Supported through optional accessories; no built-in microphone
• Ingress Protection: IP42
• Vandal Resistance: IK08
• Operating Temperature: 32°F to 113°F
• ONVIF Profiles: G, M, S and T
• TAA Compliant: Yes
