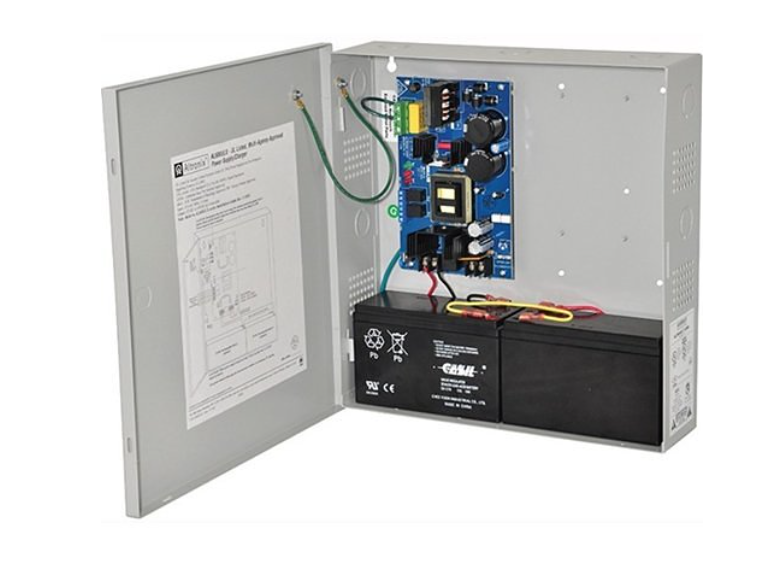

Altronix AL600ULX Single-Output 12/24VDC 6A Power Supply/Charger, BC300 Enclosure
The Altronix AL600ULX is a single-output power supply and battery charger that converts a 115VAC, 60Hz input into a selectable 12VDC or 24VDC output. It delivers 6A of continuous supply current at either voltage for access control, fire alarm and other low-voltage security systems.
The AL600ULX provides a filtered and electronically regulated non-power-limited output with short-circuit and thermal-overload protection. Its built-in charger supports sealed lead-acid or gel-type standby batteries and automatically transfers connected equipment to battery power during an AC failure.
Form C supervision contacts monitor AC failure, low-battery conditions and battery presence. LED indicators provide visual status for AC input and DC output. The complete power supply and charger is housed in an Altronix BC300 indoor wall-mount enclosure with combination conduit knockouts.
Main Features
- Single selectable 12VDC or 24VDC output
- Provides 6A continuous supply current
- Non-power-limited output
- 115VAC, 60Hz input
- Filtered and electronically regulated DC output
- Short-circuit and thermal-overload protection
- Built-in charger for sealed lead-acid or gel-type batteries
- Maximum battery-charging current of 0.7A
- Automatic transfer to standby battery during AC failure
- Zero-voltage-drop transfer to battery backup
- AC-failure supervision with Form C contacts
- Selectable AC-failure notification delay of 30 seconds or 6 hours
- Low-battery and battery-presence supervision with Form C contacts
- LED indicators for AC input and DC output
- BC300 indoor wall-mount enclosure
- Batteries sold separately
Product Specifications
| Specification | Details |
|---|---|
| Brand | Altronix |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | AL600ULX |
| Product Series | ULX |
| Product Type | Power supply and battery charger |
| Number of Outputs | One |
| Input Voltage | 115VAC, 60Hz, 3.5A |
| Selectable Output Voltage | 12VDC or 24VDC |
| Continuous Supply Current | 6A |
| Output Classification | Non-power limited |
| Output Regulation | Filtered and electronically regulated |
| Battery Compatibility | Sealed lead-acid or gel-type batteries |
| Maximum Charging Current | 0.7A |
| Battery Transfer | Automatic upon AC failure |
| Enclosure | Altronix BC300 |
| Enclosure Type | Indoor wall mount |
| Enclosure Dimensions | 13"W × 13.5"H × 3.25"D |
| Conduit Knockouts | Combination 1/2" and 3/4" |
| Operating Temperature | 32°F to 120°F |
| Storage Temperature | −4°F to 158°F |
| Relative Humidity | 85% ± 5% |
| System AC Input Requirement | 402.5VA |
| Product Weight | Approximately 7.05 lb |
| UPC | 782239930821 |
| Country of Origin | United States; country of origin is subject to change |
| Batteries | Sold separately |
Listings and Compliance
- UL 294 Listed for Access Control System Units
- UL 1481 Listed for Fire Protective Signaling System Power Supplies
- cUL Listed to CSA C22.2 No. 205-M1983
- California State Fire Marshal approved
- NYC Department of Buildings MEA approved
- FM approved
- NFPA 72 compliant
- TAA compliant
- NDAA compliant
- BAA compliant
Installation and battery selection must follow the manufacturer’s instructions and all applicable electrical, life-safety and building codes.
