Altronix AL400ULX Single-Output 12/24VDC Power Supply/Charger, 4A/3A, BC300 Enclosure
The Altronix AL400ULX is a single-output power supply and battery charger that converts a 115VAC, 60Hz input into a selectable 12VDC or 24VDC Class 2 power-limited output. It provides up to 4A at 12VDC or 3A at 24VDC, supporting fire alarm, access control, intrusion alarm and other low-voltage security systems.
The filtered and electronically regulated DC output includes short-circuit and thermal-overload protection. A built-in charger supports sealed lead-acid or gel-type standby batteries and automatically transfers connected equipment to battery power during an AC failure.

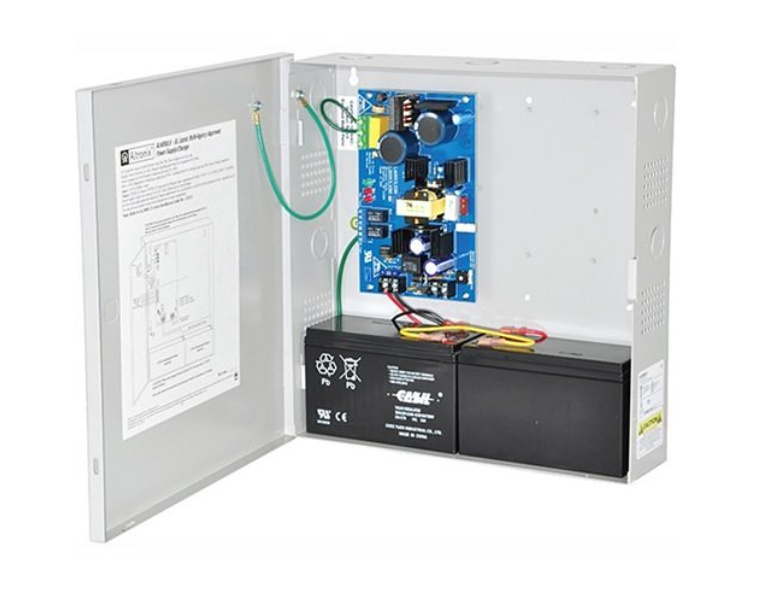

AC-failure, low-battery and battery-presence supervision contacts support system monitoring. LED indicators provide visual status for AC input, DC output and battery conditions. The power supply is housed in an Altronix BC300 indoor wall-mount enclosure with combination conduit knockouts.
Main Features
- Single selectable 12VDC or 24VDC output
- Provides 12VDC at 4A or 24VDC at 3A
- Class 2 rated power-limited output
- 115VAC, 60Hz input
- Filtered and electronically regulated DC output
- Short-circuit and thermal-overload protection
- Built-in charger for sealed lead-acid or gel-type batteries
- Maximum battery-charging current of 0.7A
- Automatic transfer to standby battery during AC failure
- Zero-voltage-drop transfer to battery backup
- AC-failure supervision with Form C contacts
- Selectable AC-failure notification delay of 30 seconds or 6 hours
- Low-battery and battery-presence supervision with Form C contacts
- LED indicators for AC input, DC output and battery status
- BC300 indoor wall-mount enclosure
- Batteries sold separately
Product Specifications
| Specification | Details |
|---|---|
| Brand | Altronix |
| Manufacturer Part Number | AL400ULX |
| Product Type | Power supply and battery charger |
| Number of Outputs | One |
| Input Voltage | 115VAC, 60Hz, 3.5A |
| Input Fuse | 3.5A at 250V |
| Selectable Output | 12VDC or 24VDC |
| Supply Current | 4A at 12VDC or 3A at 24VDC |
| 12VDC Range for UL 603 Applications | 11.5–13VDC |
| 24VDC Range for UL 603 Applications | 23–26VDC |
| Output Classification | Class 2 power limited |
| Output Regulation | Filtered and electronically regulated |
| Battery Compatibility | Sealed lead-acid or gel-type batteries |
| Maximum Charging Current | 0.7A |
| Battery Transfer | Automatic upon AC failure |
| Enclosure | Altronix BC300 |
| Enclosure Type | Indoor wall mount |
| Enclosure Dimensions | 13"W × 13.5"H × 3.25"D |
| Conduit Knockouts | Combination 1/2" and 3/4" |
| Operating Temperature | 32°F to 120°F |
| Storage Temperature | −4°F to 158°F |
| Product Weight | Approximately 6.95 lb |
| Batteries | Sold separately |
Listings and Compliance
- UL 294 Listed for Access Control System Units
- UL 603 Listed for Burglar Alarm System Power Supplies
- UL 1481 Listed for Fire Protective Signaling System Power Supplies
- UL 1069 Listed for Hospital Signaling and Nurse Call Equipment
- cUL Listed
- ULC-S318-96 Listed
- California State Fire Marshal approved
- FM approved
- NFPA 72 compliant
- TAA compliant
- NDAA compliant
Installation and battery selection must follow the manufacturer’s instructions and all applicable electrical, life-safety and building codes.
