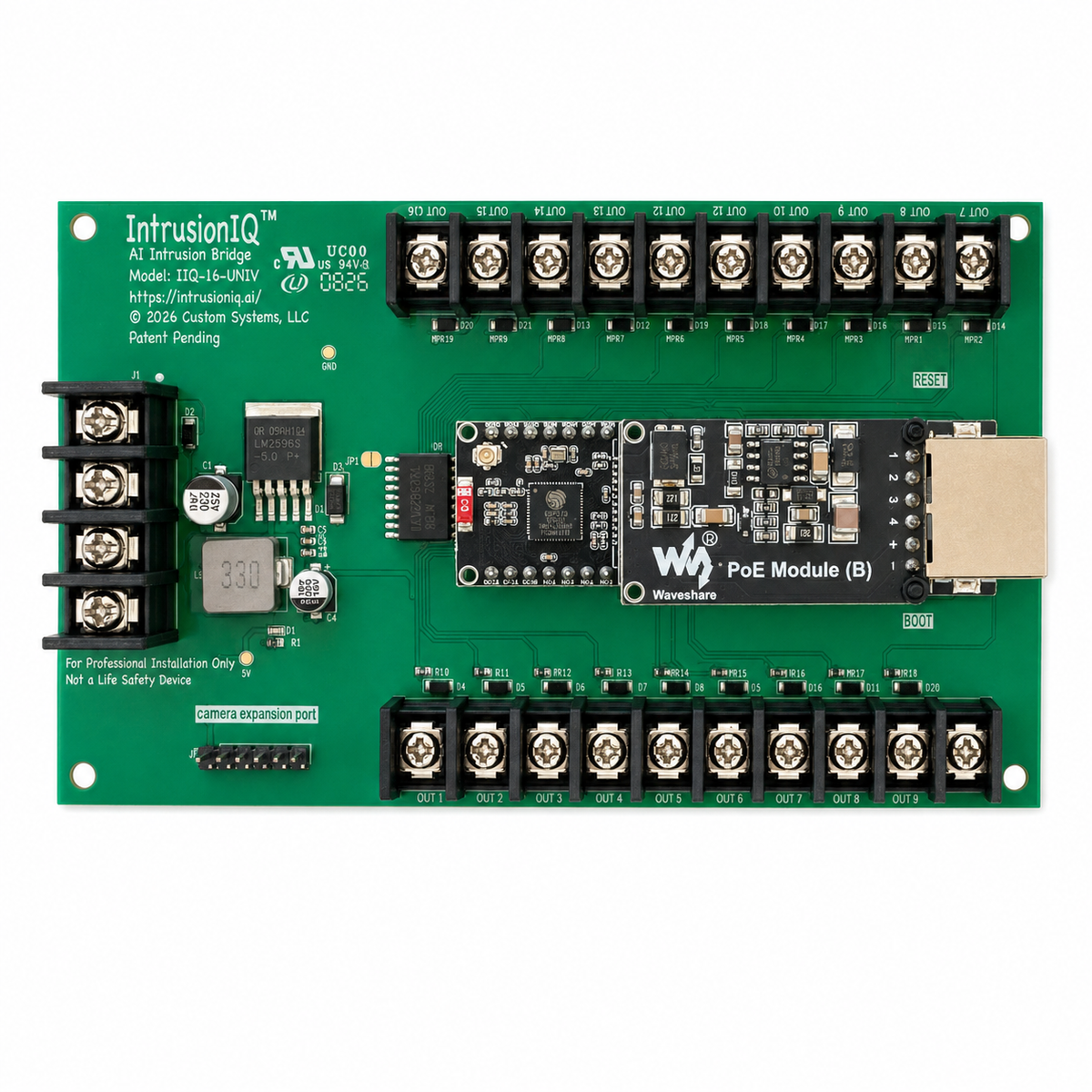

IntrusionIQ™ 16-Zone AI Camera-to-Alarm Bridge Kits

The IntrusionIQ™ 16-Zone Bridge is an Ethernet-connected AI camera-to-alarm interface designed for professional security integrators. It receives analytic events from compatible AI-enabled IP cameras and translates those events into standard alarm zone outputs for an existing intrusion alarm panel.

This allows compatible security cameras to function as intelligent intrusion sensors while preserving the alarm panel, keypads, central station connection and monitoring workflow already in place. Up to 16 programmable zone outputs can be assigned to camera analytics events for indoor or perimeter intrusion detection.

Instead of responding to basic movement alone, compatible camera analytics can identify activity such as human or vehicle detection, line crossing and entry into a defined region. This can help reduce nuisance alarms caused by animals, weather or other environmental movement.

IntrusionIQ™ processes camera analytic events locally and sends the verified alarm event through the existing alarm system. Video does not need to leave the premises, and no remote video verification service is required.

Main Features

• Converts AI camera analytics events into standard alarm panel zone signals
• Provides up to 16 programmable alarm zone outputs
• Ethernet network interface connects to compatible IP camera networks
• Supports compatible AI-enabled and ONVIF camera systems
• Allows cameras to function as advanced intrusion and motion sensors
• Works with existing conventional intrusion alarm panels
• Does not require replacement of the existing alarm infrastructure
• Cameras do not require a separate IntrusionIQ™ Point Identification Device
• Supports interior and exterior intrusion-detection applications
• Uses edge-based camera analytics to help distinguish meaningful activity from environmental motion
• Alarm events can be paired or cross-zoned when supported by the alarm panel and system configuration
• Preserves existing alarm keypads, communication paths and central station workflows
• No required cloud-based video verification
• No recurring remote video-verification fees
• Designed for professional alarm and security integrators







  How the IntrusionIQ™ Bridge Works

  1. A compatible AI camera identifies a configured event, such as a person, vehicle, line crossing or entry into a defined region.
  2. The camera sends the analytics event to the IntrusionIQ™ Bridge over the Ethernet network.
  3. The bridge translates the event into one of its programmable alarm zone outputs.
  4. The existing intrusion panel processes the event like a conventional alarm zone.
  5. If the system is armed, the panel can transmit the alarm through its existing phone, cellular, radio or internet communicator.

Alarm Panel Compatibility

The IntrusionIQ™ 16-Zone Bridge is designed to interface with conventional alarm panels that support standard zone inputs.

Compatible alarm-panel platforms include:

• Honeywell Home and Resideo VISTA Series
• Bosch intrusion panels
• DSC PowerSeries
• Napco Gemini
• DMP panels
• Other conventional alarm panels using standard zone inputs

Camera Compatibility

IntrusionIQ™ supports integration with select modern AI-enabled and ONVIF camera systems. Compatible camera manufacturers identified by IntrusionIQ™ include Speco Technologies, Hikvision, InVid Tech and i-PRO.

Camera compatibility can vary by model, firmware version and configured analytics. Confirm the exact camera and firmware combination before ordering or designing the system.

Technical Specifications

• Product type: AI camera-to-alarm bridge
• Alarm zone capacity: Up to 16 programmable zone outputs
• Network connection: Ethernet
• Camera integration: Compatible AI video analytics and select ONVIF camera systems
• Alarm-panel interface: Conventional alarm-panel zone inputs
• Power options: Local 12 VDC power or 48 V Power over Ethernet
• Typical estimated current draw: Approximately 113 mA at 12 VDC
• Typical estimated PoE current draw: Approximately 27 mA at 48 V PoE
• 12 VDC input design budget: 0.16 A
• 48 V PoE input design budget: 0.04 A
• Application: Commercial or residential indoor and perimeter intrusion detection
• Installation: Professional installation and system programming recommended

Ideal Applications

• Retrofitting an existing alarm system with AI-assisted detection
• Commercial buildings and offices
• Warehouses and storage facilities
• Large yards and property perimeters
• Residential intrusion systems
• Locations where conventional PIR motion detectors are impractical
• Systems requiring earlier perimeter detection
• Properties seeking to reduce nuisance alarms
• Facilities that want to retain their existing alarm panel and monitoring provider

Important Product Information

IntrusionIQ™ is a professional integration product. Camera analytics capabilities depend on the selected camera, firmware, positioning and configuration. Alarm-panel compatibility, zone programming and power requirements should be confirmed by a qualified security integrator before installation.

Published power-consumption figures are engineering estimates for system planning and should be verified against the final production hardware and firmware.
